Loader Hydraulic Cylinder Solutions

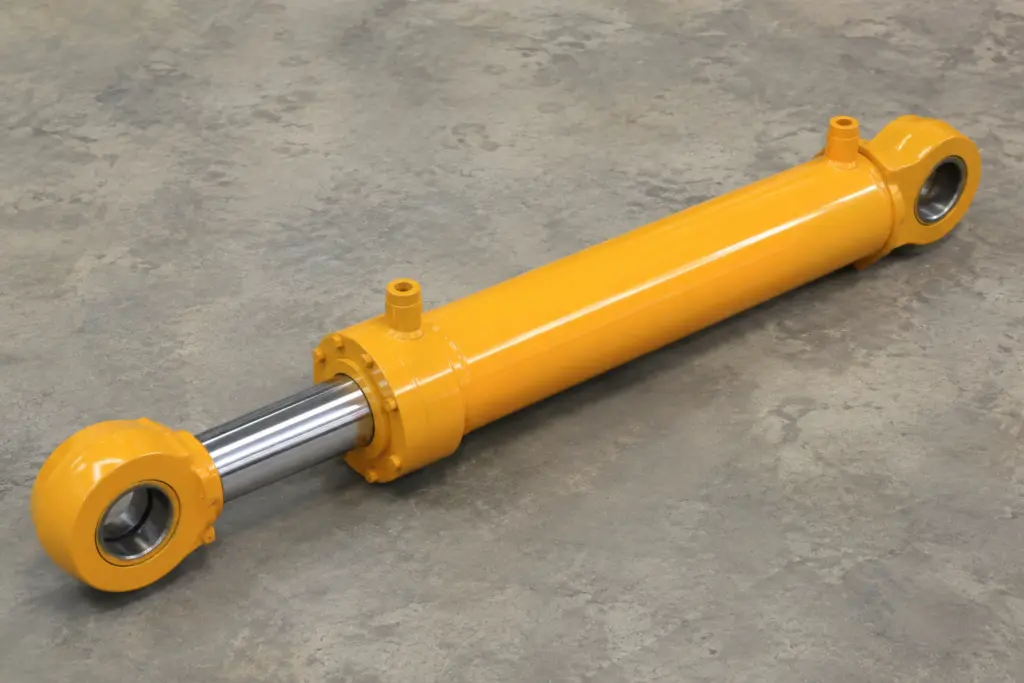

ZHY Hydraulic manufactures custom loader hydraulic cylinders for wheel loaders, front loaders, skid steer loaders, backhoe loaders, agricultural loaders, and material handling equipment.
Hydraulic Cylinders Used in Loader Equipment
Loader equipment uses different hydraulic cylinders to control lifting, tilting, steering, bucket movement, and attachment operation. Each cylinder position requires suitable force, stroke, mounting accuracy, and sealing performance.

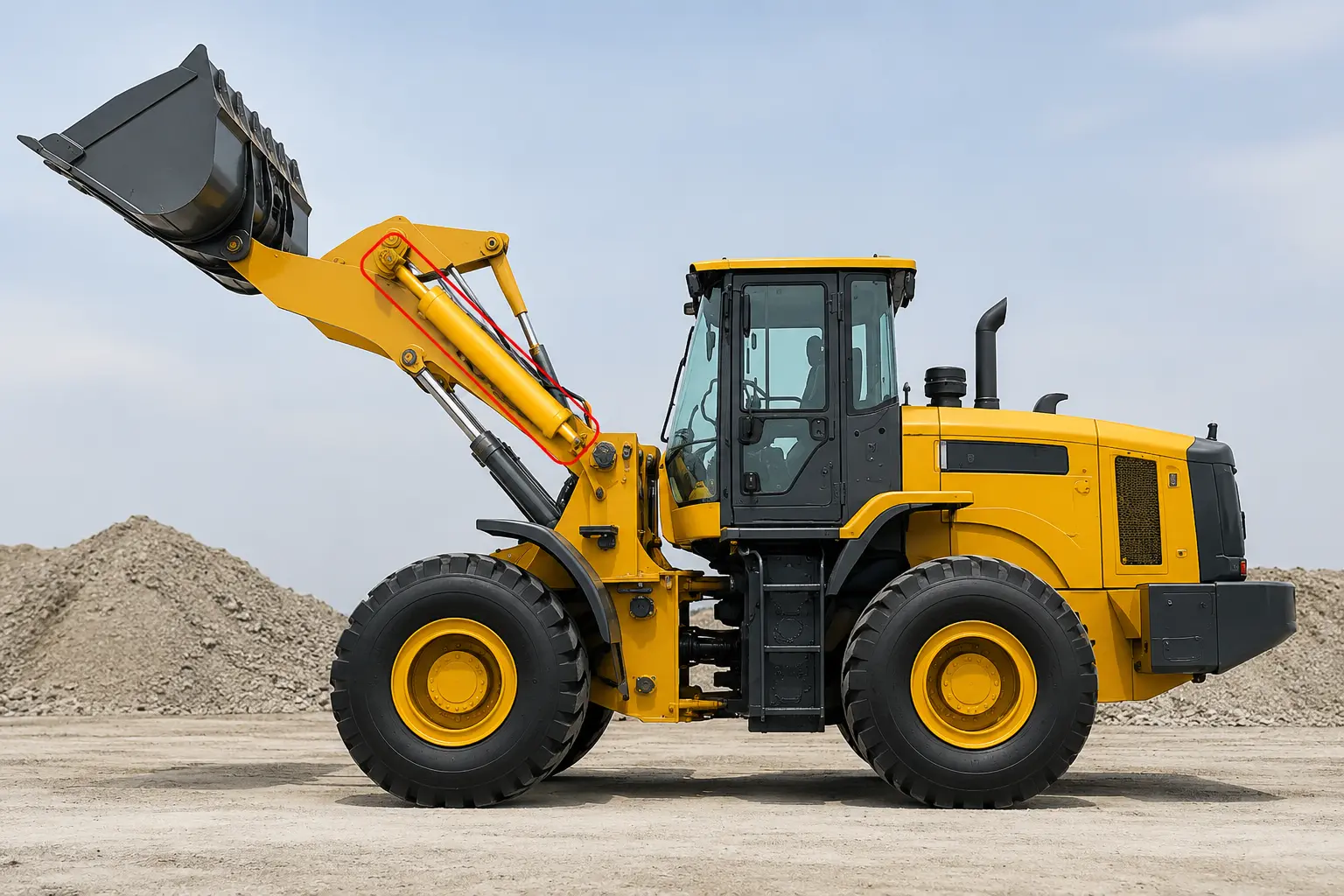

Loader Lift Cylinder
Loader lift cylinders are used to raise and lower the loader arms or front lifting structure. These cylinders must provide strong lifting force, stable rod strength, accurate stroke control, and reliable sealing performance under repeated heavy-duty loading conditions.

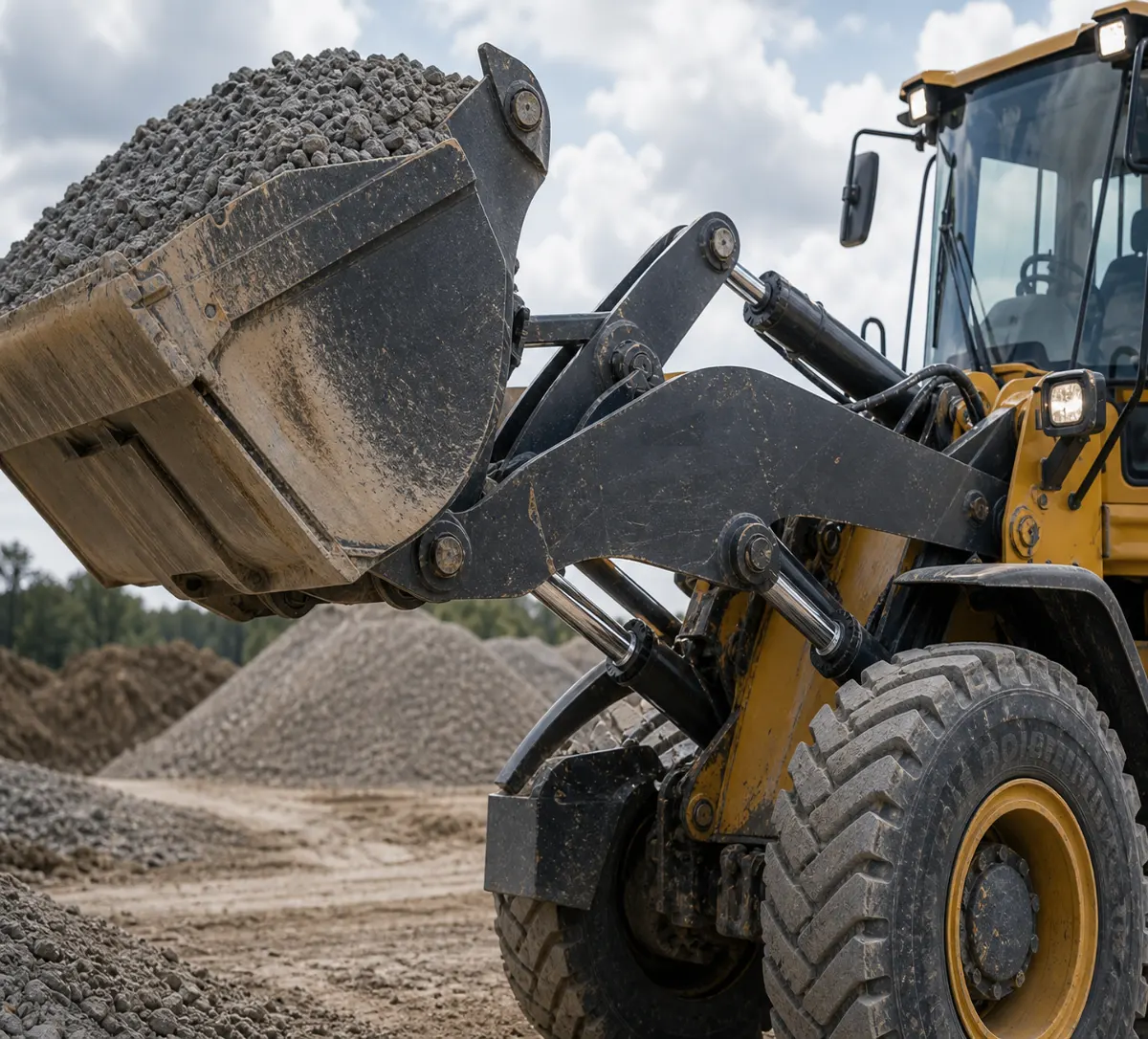

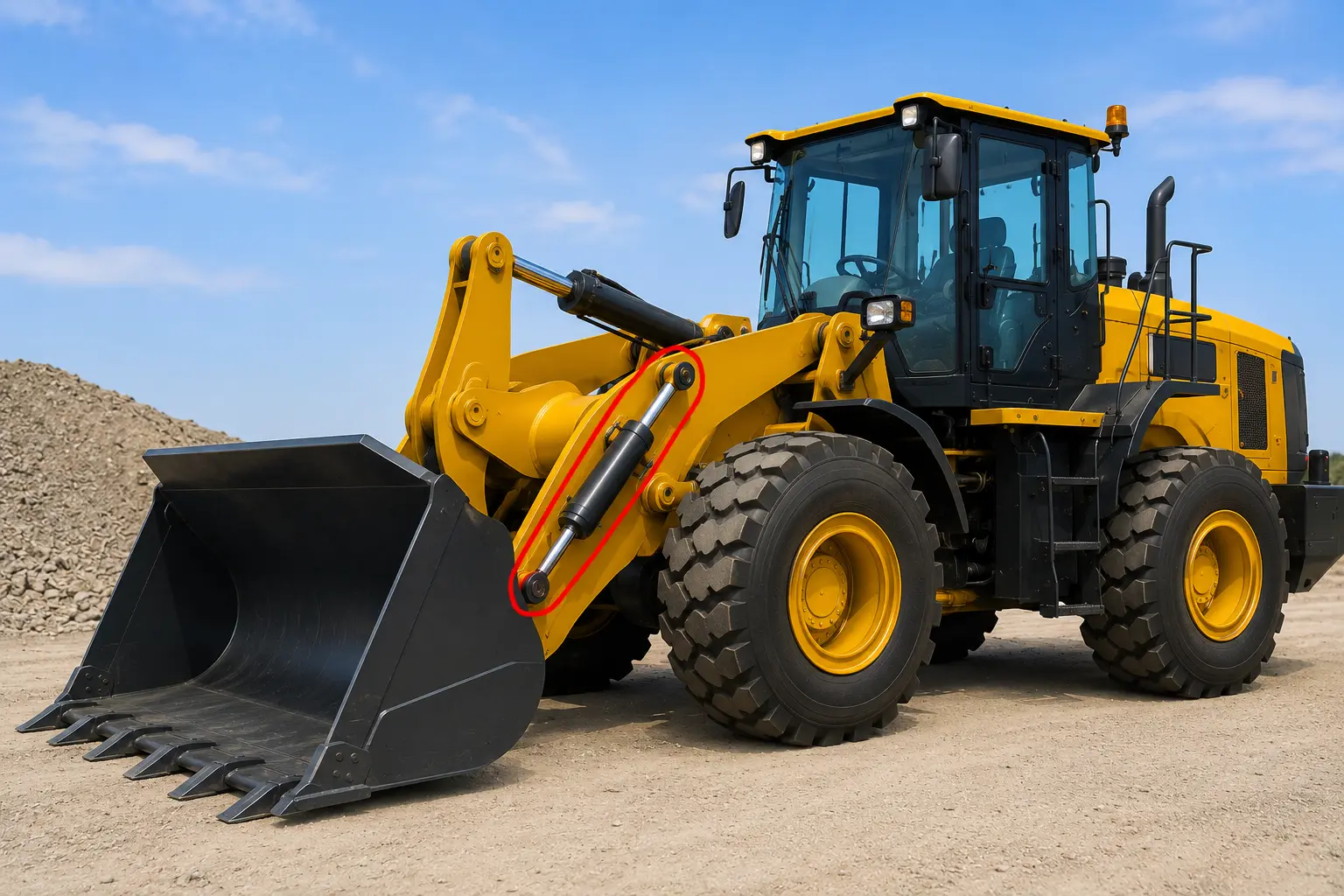

Loader Tilt Cylinder
Loader tilt cylinders control bucket tilting, dumping, and rollback movement. They are important for smooth material loading and unloading. Proper stroke length, mounting angle, impact resistance, and seal durability help ensure stable bucket control during daily operation.
Bucket Cylinders for Loaders
Bucket cylinders for loaders support bucket loading, dumping, scraping, and material handling. These cylinders need good force output, wear resistance, stable working stroke, and strong structural design to handle repeated impact and outdoor working conditions.

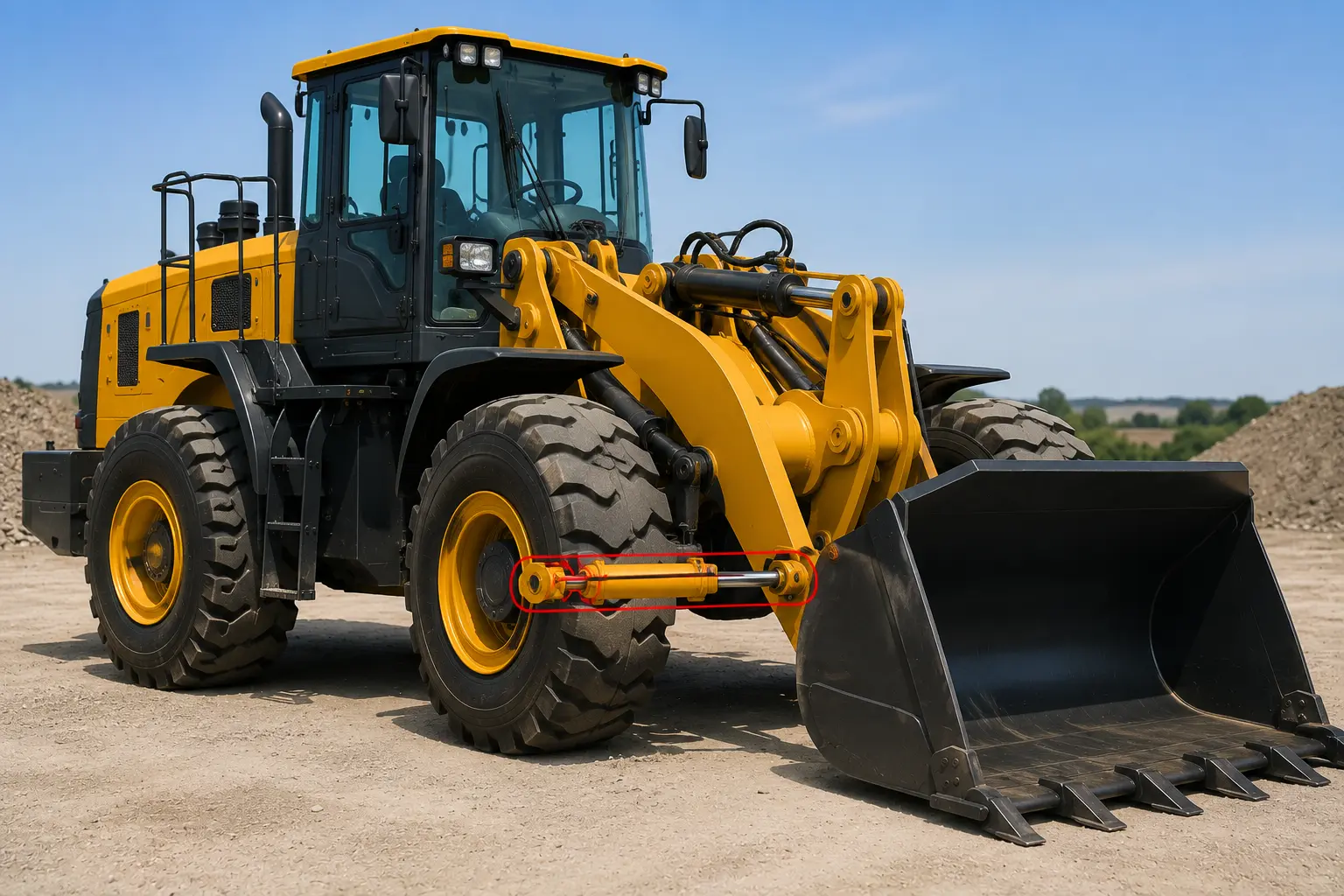

Steering Cylinders
Steering cylinders are used on certain loader designs to support smooth and accurate steering movement. They require stable sealing, precise alignment, responsive movement, and reliable performance under frequent direction changes and uneven jobsite conditions.

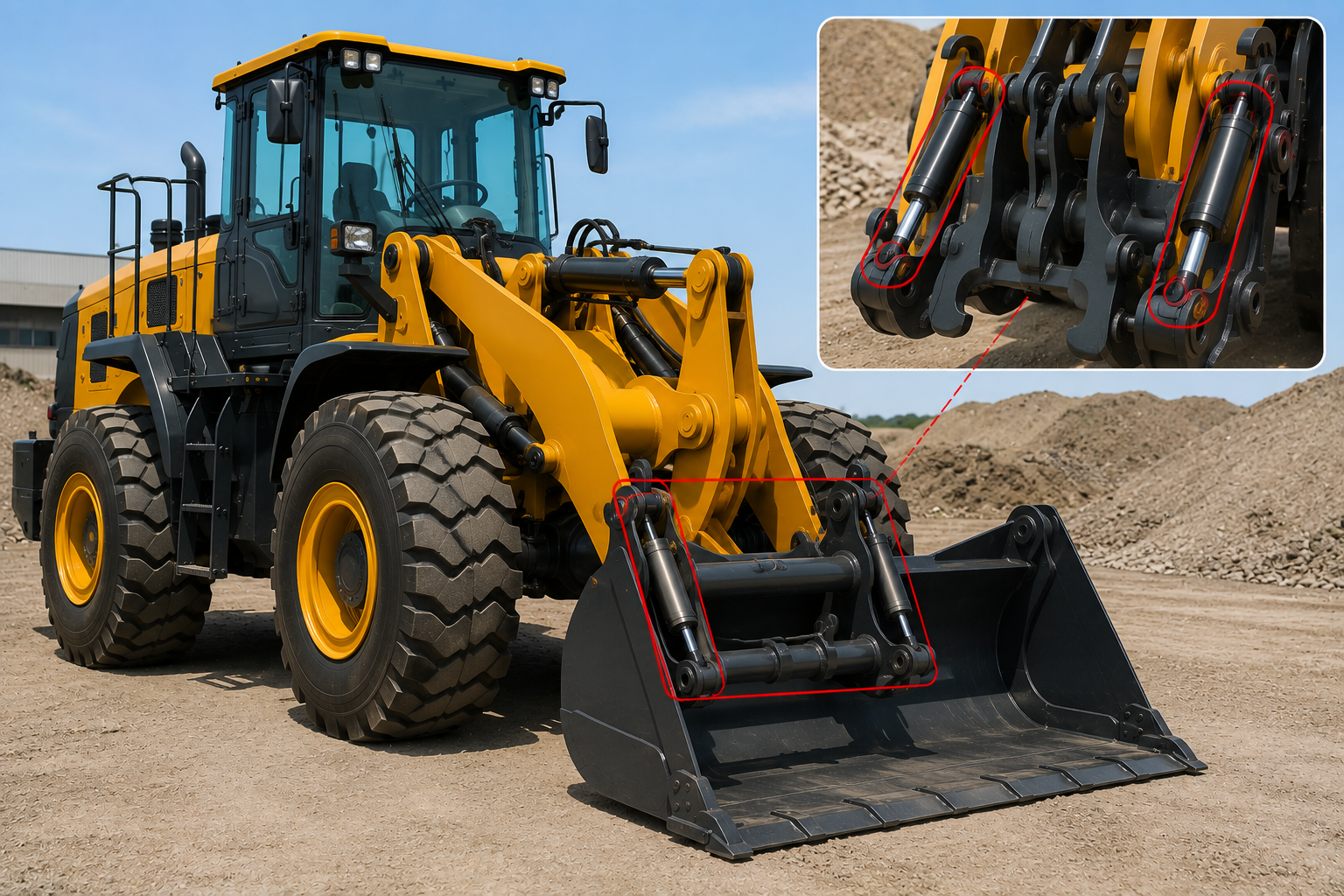

Quick Coupler Cylinders
Quick coupler cylinders control attachment locking and release for loader tools. These cylinders need compact structure, secure movement, reliable locking force, and accurate stroke control to help operators change attachments safely and efficiently.
Attachment Cylinders
Attachment cylinders are used for forks, grapples, snow blades, clamps, sweepers, and other loader tools. These cylinders are often customized according to attachment type, working load, stroke length, mounting position, port direction, and operating pressure.
Key Requirements for Loader Hydraulic Cylinders
Loader hydraulic cylinders work under repeated lifting, tilting, pushing, dumping, and impact conditions. Poor cylinder design may lead to oil leakage, rod bending, weak lifting, unstable bucket movement, seal failure, or poor replacement fitment.
For loader applications, ZHY Hydraulic focuses on these key requirements:
Lifting Force & Bore Size
The bore diameter should match the loader’s hydraulic pressure and lifting load to avoid weak lifting performance.
Rod Strength & Side Load Resistance
Loader lift cylinders and bucket cylinders need proper rod diameter, guide structure, and mounting alignment to handle side load and impact.
Stroke Length & Movement Range
The stroke must match the loader arm, bucket tilt angle, or attachment movement to prevent limited operation or mechanical interference.
Seal Performance
Suitable seal materials and sealing structures help reduce leakage risk in dusty, muddy, and high-cycle working conditions.
Mounting Accuracy
Pin diameter, clevis width, mounting hole position, and closed length should be confirmed before production to avoid fitment problems.
Surface Protection
Rod coating, painting, anti-rust treatment, and export packing help protect loader hydraulic cylinders during outdoor use and shipment.
Custom Options for Loader Hydraulic Cylinders
ZHY Hydraulic supports custom loader hydraulic cylinder production for OEM buyers, repair buyers, distributors, and equipment service companies.
| Custom Option | What Can Be Confirmed | Why It Matters |
|---|---|---|
| Bore Diameter | Customized according to loader lifting force, pressure, and working load | Wrong bore size may cause weak lifting or slow operation |
| Stroke Length | Confirmed based on loader arm, bucket, or attachment movement range | Incorrect stroke may reduce movement or cause interference |
| Rod Diameter | Selected according to load, side force, and cylinder position | Undersized rods may bend, scratch, or fail early |
| Closed & Extended Length | Checked against original cylinder, drawing, sample, or machine space | Wrong overall length can prevent proper installation |
| Mounting Type | Clevis, eye, pin mount, trunnion, or custom mounting design | Mounting mismatch may require costly modification |
| Pin Diameter & Clevis Width | Confirmed according to loader connection points | Small errors can cause loose fit or assembly failure |
| Seal System | Seal material, seal brand, and sealing structure can be selected | Proper seals reduce oil leakage and maintenance frequency |
| Port Size & Port Position | Thread type, port direction, and port location can be customized | Wrong port position may interfere with hose routing |
| Tube Material & Welding Structure | Matched to pressure, impact, and working conditions | Strong structure improves durability under heavy use |
| Rod Surface Treatment | Chrome plating, surface finishing, and anti-rust protection | Better surface quality helps protect seals and extend service life |
| Painting Color & Finish | Standard or buyer-specified painting can be supported | Helps match OEM equipment or distributor branding |
| Logo & Packing | Logo marking, neutral packing, export packing, or buyer packing | Supports OEM supply, distributor sales, and safe shipment |
| Drawing-Based Production | Manufactured according to drawings or confirmed technical data | Suitable for OEM projects and repeat orders |
| Sample-Based Replacement | Manufactured based on old cylinder samples, photos, and measurements | Useful when original part numbers are unavailable |
How to Choose the Right Loader Hydraulic Cylinder
When choosing a loader hydraulic cylinder, buyers should not judge only by appearance.
The right cylinder depends on cylinder position, loader model, lifting capacity, hydraulic pressure, stroke, mounting size, port direction, seals, and working environment.
If you need a loader lift cylinder → focus on bore size, rod strength, and stroke accuracy.
Poor selection may reduce lifting force and shorten service life.
If you need a tilt or bucket cylinder → check impact resistance, stroke length, and mounting position.
These cylinders must match the bucket’s lifting, dumping, and scraping movement.
If you need a replacement cylinder → confirm dimensions before comparing price.
Pin size, clevis width, closed length, extended length, port position, and mounting type must fit correctly.
If the loader works in mud, dust, or outdoor conditions → choose better seals and rod surface protection.
This helps reduce leakage, scratches, corrosion, and maintenance.
If you are an OEM buyer → confirm drawings, pressure, working cycle, testing standards, and batch consistency.
Stable quality matters more than the lowest unit price.
Common Loader Hydraulic Cylinder Problems and ZHY Solutions
Many loader cylinder failures are caused by wrong selection, poor sealing, weak rod design, contamination, or inaccurate replacement dimensions.
| Common Problem | Possible Cause | ZHY Solution |
|---|---|---|
| Oil leakage around rod seal | Worn seals, scratched rod, contaminated oil, poor seal material | Select suitable seals, improve rod surface quality, and perform pressure testing |
| Loader cannot lift heavy material | Wrong bore size, internal leakage, low pressure, piston seal failure | Review bore diameter, pressure rating, piston seal design, and working load |
| Bucket movement is weak or unstable | Wrong stroke, poor valve matching, internal leakage, damaged tilt cylinder | Confirm cylinder stroke, sealing structure, and loader movement requirements |
| Cylinder cannot fit the loader | Wrong closed length, pin size, clevis width, or port position | Confirm drawings, samples, photos, and measurement sheet before production |
| Rod bends or gets scratched | Side load, overload, poor guide structure, harsh operating environment | Check rod diameter, guide design, mounting alignment, and surface treatment |
| Cylinder rusts during use or shipping | Poor coating, outdoor exposure, weak packing, long transport time | Use anti-rust protection, quality painting, rod protection, and export packing |
| Early cylinder failure | Poor welding, wrong material, overload, weak design, poor QC | Improve welding strength, material selection, inspection, and pressure testing |
Manufacturing and Quality Control for Loader Hydraulic Cylinders
ZHY Hydraulic focuses on dimensional accuracy, welding strength, sealing reliability, and pressure performance before shipment.
Technical Confirmation
Confirm loader cylinder drawings, samples, bore diameter, rod diameter, stroke length, mounting type, pin size, port position, working pressure, and operating environment before production.
Material Preparation
Select suitable cylinder tube, piston rod, seals, welding parts, mounting components, and surface treatment according to loader load, pressure, and working conditions.
Machining & Welding
Process the tube, rod, piston, gland, clevis, and mounting parts with controlled dimensions, welding strength, and alignment accuracy.
Assembly
Install seals, piston, rod, gland, end fittings, and mounting components according to the confirmed loader lift cylinder or tilt cylinder structure.
Pressure Testing
Test each loader hydraulic cylinder for oil leakage, pressure holding, smooth movement, and stable lifting or tilting performance before shipment.
Painting & Packing
Apply rod protection, painting, anti-rust treatment, and export packing to protect replacement loader cylinders during storage and transportation.
Related Hydraulic Cylinder Applications for Construction Equipment
Explore related hydraulic cylinder applications for construction machinery. These pages help buyers compare cylinder requirements for excavators, bulldozers, cranes, and broader construction equipment systems.
Excavator Hydraulic Cylinders
Hydraulic cylinders for excavator boom, arm, bucket, blade, and attachment systems. Suitable for OEM production, replacement cylinder supply, and custom manufacturing based on drawings or samples.
Bulldozer Hydraulic Cylinders
Hydraulic cylinders for bulldozer blade lifting, tilting, ripper control, steering, and crawler equipment operation. Built for impact load, outdoor jobsites, and heavy earthmoving conditions.
Crane Hydraulic Cylinders
Hydraulic cylinders for crane lifting, telescopic boom, luffing, outrigger, stabilizer, and positioning systems. Designed for controlled movement, pressure holding, and safety-focused performance.
Construction Hydraulic Cylinders
Hydraulic cylinder solutions for excavators, loaders, bulldozers, cranes, and other construction machinery. This category helps buyers compare cylinder applications by equipment type and working condition.
Frequently Asked Questions
1. What hydraulic cylinders are used in a front loader?
A front loader commonly uses loader lift cylinders, loader tilt cylinders, bucket cylinders, steering cylinders, quick coupler cylinders, and attachment cylinders. Each front loader hydraulic cylinder controls a different movement and requires different bore size, rod diameter, stroke length, mounting structure, and pressure rating. Before ordering, buyers should confirm the cylinder position first because a loader lift cylinder and a loader tilt cylinder may have different force, stroke, and mounting requirements.
2. How do I choose the right replacement loader hydraulic cylinder?
To choose the right replacement loader hydraulic cylinder, buyers should confirm bore diameter, rod diameter, stroke length, closed length, extended length, pin hole size, clevis width, port size, port position, mounting type, and working pressure. If the original part number is not available, clear photos, old cylinder samples, and a measurement sheet can help confirm the design. A common mistake is only matching the stroke while ignoring mounting dimensions or port direction.
3. Why does a loader hydraulic cylinder leak oil?
Loader hydraulic cylinder leakage is often caused by worn seals, scratched piston rods, contaminated hydraulic oil, poor seal material, rod corrosion, misalignment, or excessive working pressure. Loaders often work in muddy, dusty, and high-impact environments, which can accelerate seal wear. If leakage is not solved, the machine may lose lifting force, move slowly, waste hydraulic oil, and increase downtime. Proper seal selection, rod surface quality, machining accuracy, and pressure testing help reduce leakage risk.
4. What is the difference between a loader lift cylinder and a tilt cylinder?
A loader lift cylinder is mainly used to raise and lower the loader arm, so it must provide strong lifting force and stable support under heavy load. A loader tilt cylinder controls bucket tilting, dumping, and rollback movement, so stroke accuracy, movement angle, and impact resistance are very important. These cylinders may look similar, but their working positions, force directions, mounting angles, and stroke requirements are different. Buyers should not replace one type with another without technical confirmation.
5. Can ZHY Hydraulic manufacture custom loader hydraulic cylinders?
Yes. ZHY Hydraulic can manufacture custom loader hydraulic cylinders for OEM buyers, repair buyers, distributors, and equipment service companies. Custom options include bore diameter, stroke length, rod diameter, closed length, mounting type, pin size, clevis width, seal system, port position, tube material, welding structure, rod surface treatment, painting color, logo marking, and export packing. Production can be based on drawings, samples, photos, or confirmed measurement data.
6. What information should I provide before ordering loader hydraulic cylinders?
Buyers should provide the loader model, cylinder position, drawing or sample, bore diameter, rod diameter, stroke length, closed length, extended length, pin hole diameter, mounting width, port size, port direction, working pressure, quantity, and working environment. If some information is missing, photos from different angles and manual measurements can still help ZHY Hydraulic review the cylinder design. Accurate information reduces the risk of wrong fitment, production delay, and installation problems.
7. Should I repair or replace a damaged loader hydraulic cylinder?
Repair may be suitable when the problem is limited to seals or minor leakage. Replacement is usually more practical when the rod is bent, the rod surface is badly scratched, the barrel is damaged, the mounting structure is worn, or the cylinder has repeated leakage after repair. For distributors and repair buyers, replacement loader hydraulic cylinders can reduce downtime when the original part is expensive, unavailable, or difficult to source locally.
Need Custom Loader Hydraulic Cylinders for OEM or Replacement Use?
Send your drawing, sample, photos, or key dimensions. ZHY Hydraulic can help confirm the loader cylinder specification before production.
Whether you need loader lift cylinders, loader tilt cylinders, bucket cylinders, steering cylinders, attachment cylinders, or replacement loader hydraulic cylinders, ZHY Hydraulic can support custom manufacturing based on your technical requirements.
To reduce fitment mistakes and production risk, please provide the loader model, cylinder position, bore diameter, rod diameter, stroke length, closed length, pin size, mounting width, port position, working pressure, and quantity. If drawings are not available, photos and samples can also help us confirm the design.
