Construction Hydraulic Cylinders
ZHY Hydraulic manufactures high-performance hydraulic cylinders for construction equipment, delivering reliable OEM manufacturer and custom aftermarket hydraulic cylinder solutions for excavators, loaders, bulldozers, cranes, dump trucks, and other heavy-duty machinery. Designed for high pressure, heavy loads, and demanding job sites, our cylinders provide exceptional durability, precision, and long service life.

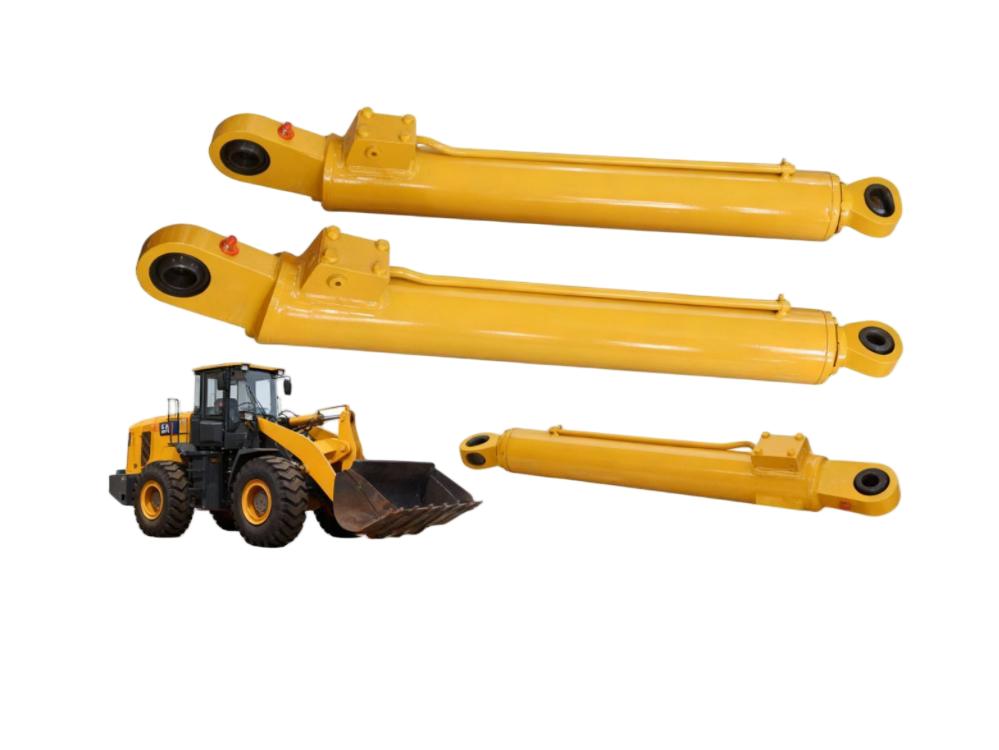

Custom Construction Hydraulic Cylinders for Heavy Equipment
Construction hydraulic cylinders work in harsher conditions than many general industrial cylinders. Your equipment may face impact load, side load, dust, mud, rock contact, vibration, uneven ground, repeated cycles, and outdoor storage. A reliable cylinder should match the machine system, jobsite load, mounting structure, stroke requirement, and sealing environment.
ZHY manufactures custom construction hydraulic cylinders for boom, arm, bucket, blade, lift, tilt, steering, outrigger, stabilizer, and replacement functions. Your cylinder can be produced by drawing, old sample, equipment brand and model, or key dimensions.
If you are sourcing from a China construction hydraulic cylinder manufacturer and supplier, ZHY can support equipment builders, construction machinery repair companies, parts distributors, rental fleets, and hydraulic cylinder wholesalers with factory-direct custom production.
hydraulic cylinders for construction equipment
ZHY customizes hydraulic cylinders according to the machine type, working motion, and jobsite load. This equipment map helps you identify the right cylinder category before sending a drawing or replacement sample.
Excavator Hydraulic Cylinders
Loader Hydraulic Cylinders
Bulldozer Hydraulic Cylinders
Crane Hydraulic Cylinders
Road Rollers &Motor Graders Hydraulic Cylinders
Concrete Pump and Special Equipment Cylinders
Why Choose Us？
Over years of hydraulic cylinder manufacturing experience, ZHY Hydraulic has supplied reliable hydraulic cylinders to Construction OEM manufacturers, equipment and parts distributors and hydraulic service companies worldwide.
Heavy-Duty Cylinder Barrels
Seamless honed steel barrels for high pressure, with wall thickness engineered to resist side-loads and bending, not just axial force.
Hard Chrome-Plated Rods with Corrosion Resistance
Hard Chrome-Plated Rods with Corrosion Resistance Rods use 30-50um high-thickness hard chrome plating for wear resistance; nitriding is available for high-end applications
Rigorous Testing & Quality Certification
Every cylinder is 100% pressure and leakage tested before shipment. ISO 9001 certified, with testing to SAE/DIN standards on request.
Full Customization Capability
We offer full custom design — bore, stroke, mounting, ports, rod ends, and cushioning — built to your exact equipment and duty cycle.
Custom Specifications for Construction Hydraulic Cylinders
For custom construction hydraulic cylinders, accurate specifications help confirm force output, stroke movement, installation fit, pressure performance, and long-term sealing reliability before production.
| Specification Item | ZHY Custom Support | What You Should Confirm |
|---|---|---|
| Cylinder Function | Boom, arm, bucket, lift, tilt, blade, ripper, steering, outrigger, stabilizer, replacement cylinder | Confirm machine system, working motion, and real jobsite load. |
| Bore Diameter | Customized according to force output and hydraulic pressure | Confirm load weight, system pressure, and required pushing or lifting force. |
| Rod Diameter | Rod design for impact load, side load, long stroke, and repeated cycles | Important for excavators, loaders, bulldozers, cranes, and heavy-duty jobsite use. |
| Stroke Length | Custom stroke based on movement range and machine geometry | Confirm working range, open length, closed length, and installation space. |
| Working Pressure | Designed according to rated pressure and peak pressure | Confirm rated pressure, peak pressure, and machine hydraulic system details. |
| Mounting Type | Clevis, pin eye, trunnion, flange, lug, spherical bearing, or special mounting | Match the cylinder to machine frame, boom, bucket linkage, blade, or outrigger structure. |
| Seal System | High-pressure, dust-resistant, mud-resistant, and wear-resistant seal options | Consider dust, mud, stone contact, high cycles, temperature, and jobsite contamination. |
| Rod Surface | Hard chrome plating and anti-corrosion treatment | Recommended for outdoor jobsites, abrasive dust, rain exposure, and export storage. |
| Oil Port | Thread type, position, angle, and port orientation customization | Confirm hose routing, port thread, port angle, and installation clearance. |
| Order Type | OEM, replacement, small-batch, and wholesale construction hydraulic cylinders | Confirm whether the project is new equipment, repair replacement, fleet maintenance, or distributor stock. |
Construction Hydraulic Cylinder Function Matrix
The same construction machine can use several hydraulic cylinders. This function matrix helps you match the cylinder structure with the correct movement and engineering focus.
| Cylinder Function | Typical Equipment | Engineering Focus |
|---|---|---|
| Boom Cylinders | Excavators, cranes, backhoes, aerial equipment | Lift force, pressure holding, rod strength, mounting accuracy, full-stroke stability |
| Arm and Bucket Cylinders | Excavators, backhoes, loaders, skid steers | Impact load, digging force, side-load resistance, rod protection, seal durability |
| Lift and Tilt Cylinders | Loaders, compact loaders, material handling attachments | Repeated cycles, tilt accuracy, pin fit, rod strength, smooth movement |
| Gripper and Finger Cylinders | Bulldozers, graders, earthmoving machines | Shock load, dust protection, blade force, ripper load, rugged mounting |
| Outrigger and Blance Cylinders | Cranes, concrete pumps, truck-mounted equipment | Load holding, leakage resistance, long stroke stability, ground support |
| Steering Cylinders | Loaders, graders, articulated construction equipment | Stroke accuracy, compact installation, seal reliability, movement response |
| Replacement Cylinders | Repair markets and older construction machines | Pin-to-pin length, bore, rod, stroke, mounting width, port direction, machine model |

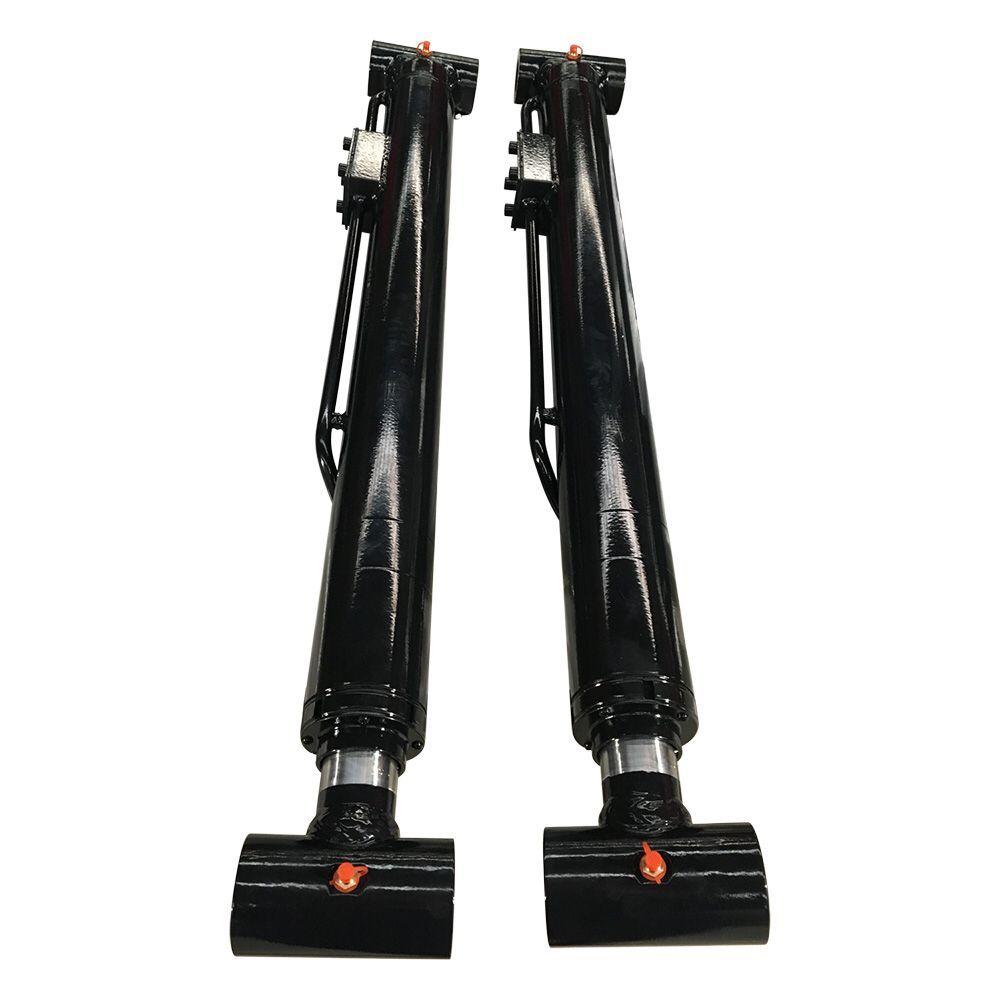

Replacement Construction Hydraulic Cylinder Support
When original construction machinery cylinders are expensive, delayed, damaged, or discontinued, ZHY can manufacture replacement construction hydraulic cylinders from drawings, photos, samples, and key measurements.
What to Send for Replacement Production
- Full cylinder photos: show the complete cylinder, rod end, base end, mounting ears, ports, and nameplate if available.
- Closed and open length: measure pin-to-pin length when fully retracted and fully extended.
- Bore and rod diameter: confirm the main force and strength dimensions as accurately as possible.
- Mounting dimensions: confirm pin diameter, mounting width, clevis gap, lug width, trunnion size, or flange layout.
- Port direction and thread: check oil port thread, position, hose clearance, and installation angle.
- Machine information: provide equipment model, cylinder function, working pressure, and photos of the installation area.
How to Choose Construction Hydraulic Cylinders
The right construction hydraulic cylinder depends on equipment type, cylinder function, jobsite load, pressure rating, stroke range, mounting size, and purchasing purpose.
Excavator, Loader and Bulldozer Cylinders
If your cylinder works in digging, loading, pushing, or blade movement, focus on impact load, rod strength, seal protection, side-load resistance, and replacement fitment.
Crane, Outrigger and Stabilizer Cylinders
If your cylinder supports lifting or stabilizing, focus on pressure holding, leakage control, long stroke stability, mounting safety, and smooth movement.
Replacement and Wholesale Cylinders
You can just send machine model,photos, drawings, or pin-to-pin length, bore, rod, stroke, port size, mounting width for review.
Common Construction Cylinder Problems and ZHY Solutions
Many construction hydraulic cylinder problems come from wrong sizing, weak rod design, poor sealing, side-load from jobsite movement, inaccurate replacement dimensions, or insufficient surface protection. ZHY reviews application details before production to reduce these risks.
| Oil Leakage and Cylinder Drift | Possible reason: seal wear, internal leakage, contamination, wrong pressure rating, or poor surface finish. |
|---|---|
| ZHY support: ZHY reviews seal system, pressure rating, machining quality, rod surface, and leakage testing before shipment. | |
| Bent Rod or Rough Movement | Possible reason: impact load, side load, long stroke, weak rod diameter, or mounting misalignment. |
| ZHY support: ZHY reviews rod diameter, guide support, mounting structure, and real jobsite force conditions. | |
| Replacement Cylinder Does Not Fit | Possible reason: wrong pin-to-pin length, port direction, mounting width, stroke length, or equipment model assumption. |
| ZHY support: ZHY checks photos, drawings, measurements, port details, and installation area before production. | |
| Short Service Life on Jobsites | Possible reason: dust, mud, stone impact, outdoor storage, insufficient rod protection, or poor seal selection. |
| ZHY support: ZHY recommends suitable wipers, rod surface treatment, paint, packing, and testing for construction environments. |

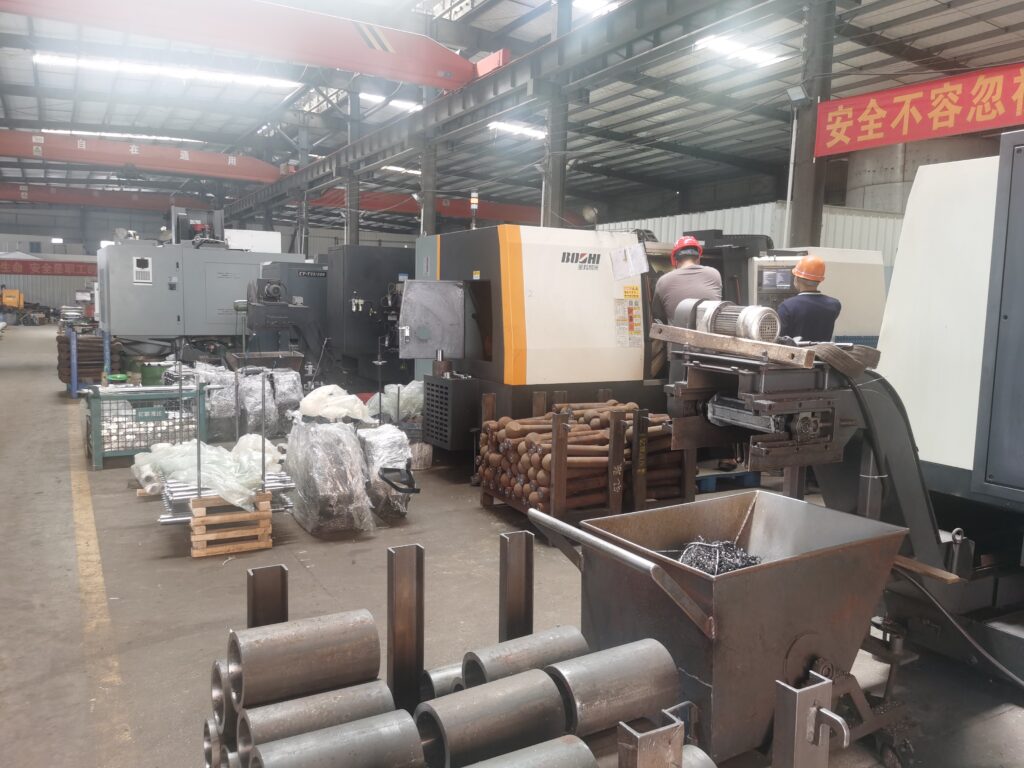

Construction Hydraulic Cylinder Manufacturing and Quality Control
ZHY controls technical review, material selection, machining, welding, pressure testing, leakage testing, and export packing to support reliable construction hydraulic cylinder supply from China.
Technical Review
Drawings, old photos, bore, rod, stroke, mounting, oil port, machine model, and working pressure are reviewed before production.
Material and Seal Selection
Barrels, rods, seals, guide rings, mounting parts, and welded components are selected for jobsite load and environment.
Machining and Welding
Components are machined and welded to support smooth movement, pressure performance, and installation accuracy.
Pressure and Leakage Testing
Finished cylinders are checked for pressure performance, leakage, stroke movement, and operation stability.
Export Packing
Cylinders are packed with rust protection, port protection, impact protection, and shipment documentation support.
Construction Hydraulic Cylinder FAQs
Common questions about custom construction hydraulic cylinders, replacement cylinders, OEM construction machinery cylinders, heavy-duty cylinder manufacturing, and wholesale supply from China.
1. What are construction hydraulic cylinders used for?
Construction hydraulic cylinders are used to control lifting, digging, pushing, tilting, steering, stabilizing, and attachment movement on excavators, loaders, bulldozers, cranes, backhoes, skid steers, concrete pumps, and other construction machinery.
2. What types of hydraulic cylinders are used in construction equipment?
Common types include excavator boom cylinders, arm cylinders, bucket cylinders, loader lift cylinders, loader tilt cylinders, bulldozer blade cylinders, ripper cylinders, crane outrigger cylinders, steering cylinders, stabilizer cylinders, and replacement construction hydraulic cylinders.
3. Can ZHY manufacture replacement construction hydraulic cylinders?
Yes. ZHY can manufacture replacement construction hydraulic cylinders when the original part is leaking, bent, damaged, discontinued, delayed, or expensive. You can send photos, drawings, bore size, rod diameter, stroke length, pin-to-pin length, mounting width, port details, working pressure, and machine model for review.
4. What information is needed for a custom construction hydraulic cylinder quote?
For a faster quote, provide cylinder function, machine model, bore diameter, rod diameter, stroke length, closed length, open length, working pressure, mounting type, pin diameter, oil port size, quantity, and application environment. Photos and drawings help confirm replacement dimensions more accurately.
5. Can ZHY support OEM construction machinery cylinders?
Yes. ZHY supports OEM construction hydraulic cylinder production for equipment manufacturers and attachment builders. Drawing-based manufacturing, custom dimensions, batch consistency, pressure testing, leakage testing, and export packing can be arranged according to project requirements.
6. How do I choose a construction hydraulic cylinder supplier?
A reliable construction hydraulic cylinder supplier should review the machine type, cylinder function, pressure rating, load condition, mounting structure, rod diameter, seal system, surface treatment, testing process, and replacement measurements before production.
7. Where can I buy wholesale construction hydraulic cylinders from China?
You can source wholesale construction hydraulic cylinders from ZHY in China for OEM equipment, repair markets, distributors, fleet maintenance, and hydraulic parts supply. As a manufacturer, supplier, and factory, ZHY supports custom production, pressure testing, export packing, and batch supply.
8. Does ZHY pressure test construction hydraulic cylinders before shipment?
Yes. ZHY can perform pressure testing, leakage testing, and full-stroke movement checks before shipment. Testing helps confirm sealing performance, pressure holding, smooth movement, and reliability before the cylinder reaches your construction equipment or warehouse.
Need Custom Construction Hydraulic Cylinders?
Send ZHY your drawing, old cylinder photos, machine model, cylinder function, bore size, rod diameter, stroke length, working pressure, mounting type, oil port details, and quantity. Our team will review your requirements before quotation.
ZHY supports excavator cylinders, loader cylinders, bulldozer cylinders, crane cylinders, backhoe cylinders, skid steer cylinders, concrete pump cylinders, replacement construction cylinders, OEM production, and wholesale construction hydraulic cylinders.
