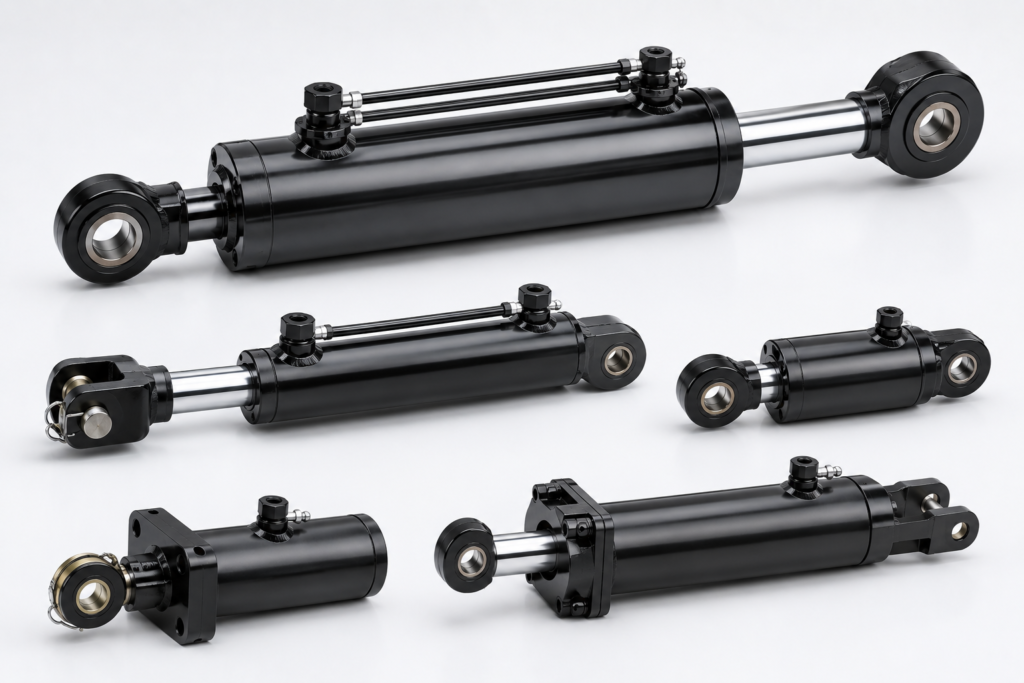

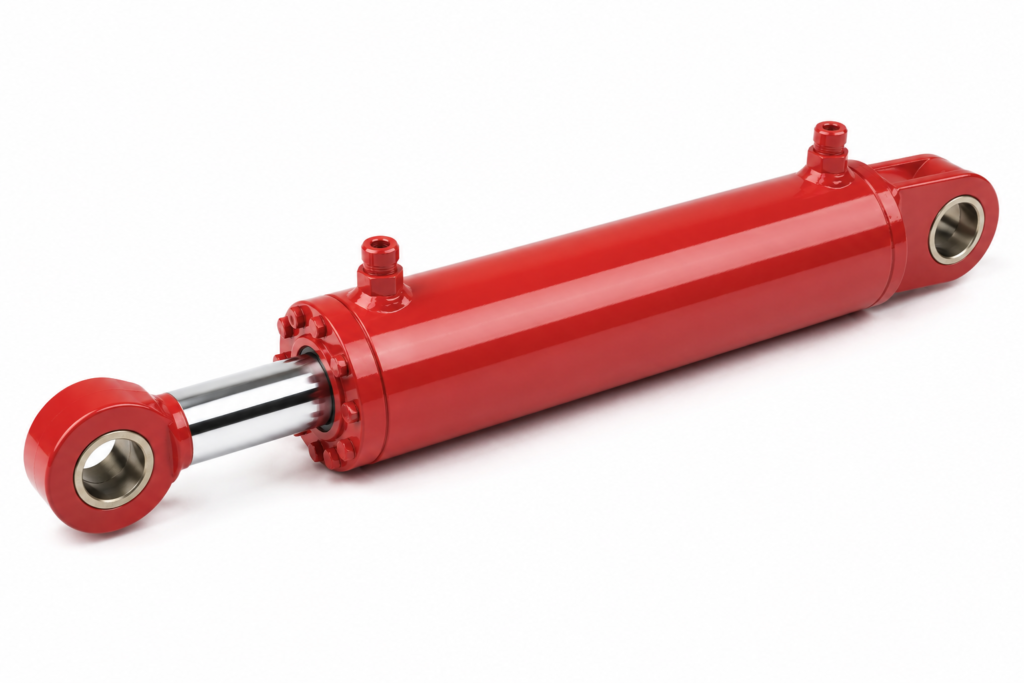

Log/Wood Splitter Hydraulic Cylinders
Wood splitter hydraulic cylinder also known as log splitter hydraulic cylinder.A hydraulic ram for log splitter does more than move a ram forward. It must create stable splitting force, resist rod deflection, complete the full stroke, return smoothly, and keep sealing performance under repeated high-load cycles.
We provide high pricision 20 ton hydraulic cylinder for log splitter to 60 ton hydraulic cylinder for log splitter,Supports multiple installation methods and custom service.
Custom Log Splitter Hydraulic Cylinder Solutions for OEM & Aftermarket
ZHY manufactures custom log splitter hydraulic cylinders for horizontal splitters, vertical splitters, tractor PTO log splitters, electric hydraulic wood splitters, commercial firewood equitment manufacturer, and replacement repair projects. Your cylinder can be produced by drawing, sample, or key dimensions.
If you are looking for hydraulic cylinders for wood splitters manufacturer and supplier from China, ZHY is your best choice,we supply log splitter ram for equipment builders, repair shops, farm machinery distributors, and hydraulic parts wholesalers with factory-direct production.
Log Splitter Hydraulic Cylinder Solutions
Explore hydraulic cylinder solutions for horizontal log splitters, vertical log splitters, PTO-driven machines, commercial firewood processors, heavy-duty wood splitters, and aftermarket replacement projects. ZHY manufactures custom cylinders for OEM equipment, distributors, and hydraulic repair companies worldwide.
Horizontal Log Splitter Cylinders
Vertical Log Splitter Cylinders
Tractor PTO Log Splitter Cylinders
Firewood Processor Cylinders
Heavy-Duty Log Splitter Cylinders
Skid Steer Log Splitter Cylinders
How the Working Cycle Ensures Efficient Splitting？
Hydraulic cylinders for log splitters complete every splitting cycle through four continuous stages: initial push, maximum splitting force, full-stroke extension, and controlled retraction. Proper bore size, stroke length, rod strength, and hydraulic pressure allow the cylinder to deliver consistent force, minimize cycle time, and improve overall splitting efficiency while reducing wear on both the machine and hydraulic system.
Initial Push
The cylinder begins movement against the log. Bore size, hydraulic pressure, and mounting alignment affect the first-contact force.
Peak Splitting Load
Hardwood, knotty wood, and large log diameter can create peak resistance. Rod diameter and cylinder structure should handle this load safely.
Full Stroke Travel
Stroke length should match log length and machine frame design so the ram can complete the split without wasted travel.
Return Cycle
Retraction should be smooth and reliable. Port size, oil flow, seal friction, and rod-side volume affect return performance.
Log Splitter Hydraulic Cylinder Selection Guide
Before ordering a new or replacement hydraulic cylinders for log splitters, verify the specifications below to ensure proper installation, sufficient splitting force, hydraulic system compatibility, and long-term operating reliability. Confirming these details in advance helps reduce installation issues, prevent performance problems, and improve overall machine efficiency.
| Specification | Why It Matters | What to Verify Before Ordering |
|---|---|---|
| Bore Diameter | Determines splitting force under hydraulic pressure | Target tonnage, wood hardness, pump pressure, and system capacity |
| Rod Diameter | Affects rod strength and bending resistance | Log size, side-load risk, stroke length, and duty cycle |
| Stroke Length | Controls ram travel and usable splitting length | Log length, wedge position, and frame clearance |
| Closed / Open Length | Ensures proper cylinder fit within the machine | Pin-to-pin dimensions, retracted length, and extended length |
| Working Pressure | Determines actual force output and cylinder durability | Rated pressure, peak pressure, and hydraulic system settings |
| Mounting Type | Transfers pushing force safely to the machine frame | Clevis, pin eye, flange, trunnion, or custom mounting |
| Port Layout | Affects hose routing and hydraulic oil flow | Port thread, port location, hose clearance, and installation space |
Common Problems and ZHY Solutions
Most log splitter cylinder problems come from insufficient force, a bent rod, slow return, wrong closed length, port restrictions, side load or a replacement that does not match the frame. The checks below help buyers identify the cause before ordering another cylinder.
Weak Splitting Force | Possible reason: bore diameter is too small, system pressure is not matched, or the target wood hardness was underestimated. | |
ZHY support: ZHY reviews target tonnage, wood type, hydraulic pressure, and cylinder dimensions before quotation. | ||
Bent Rod or Rough Movement | Possible reason: long stroke, side load, wedge resistance, or weak rod design. | |
ZHY support: ZHY reviews rod diameter, guide support, mounting alignment, and heavy-duty use conditions. | ||
Replacement Cylinder Does Not Fit | Possible reason: wrong stroke, wrong pin size, wrong mounting width, or incorrect port direction. | |
ZHY support: ZHY checks photos, measurements, port details, and frame dimensions before production. | ||
Slow Return Cycle
| Possible reason: port size, oil flow, rod-side volume, or seal friction is not well matched. | |
ZHY support: ZHY reviews the return-cycle requirement together with bore, rod, and oil flow details. | ||
Log Splitter Hydraulic Cylinder Manufacturing and Quality Control
Manufacturing starts with force, pressure, speed and fitment confirmation. Material selection, machining, welding, assembly and testing are then controlled against the approved drawing so the cylinder can deliver repeatable push-and-return performance in the intended splitter.
Technical Review
Drawings, old photos, bore, rod, stroke, mounting, oil port, and splitting force are reviewed before production.
Material and Seal Selection
Barrels, rods, seals, guide rings, and mounting parts are selected for pushing load and outdoor use.
Machining and Welding
Components are machined and welded to support smooth full-stroke movement and stable alignment.
Pressure and Leakage Testing
Finished cylinders are checked for pressure performance, leakage, movement, and stroke stability.
Export Packing
Cylinders are packed with rust protection, port protection, and shipment support for factory-direct export supply.
Log Splitter Hydraulic Cylinder FAQs
Common questions about custom hydraulic log splitter ram, wood splitter cylinders, replacement cylinders, double acting cylinders, OEM production, and wholesale supply from China.
1. What is a log splitter hydraulic cylinder used for?
A log splitter hydraulic cylinder is used to push a wedge or ram through logs. It converts hydraulic pressure into linear force for wood splitting, firewood processing, and heavy-duty log splitter equipment.
2. What information is needed for a custom log splitter hydraulic cylinder?
For a faster quote, provide bore diameter, rod diameter, stroke length, closed length, open length, working pressure, mounting type, pin diameter, oil port size, splitting force requirement, quantity, and machine photos or drawings.
3. Can ZHY manufacture replacement log splitter hydraulic cylinders?
Yes. ZHY can manufacture replacement log splitter hydraulic cylinders when the original cylinder is leaking, bent, discontinued, or difficult to source. You can send photos, pin-to-pin measurements, bore size, rod diameter, stroke length, mounting width, port thread, and working pressure for review.
4. Can ZHY make heavy-duty log splitter hydraulic cylinders?
Yes. ZHY can manufacture heavy-duty log splitter hydraulic cylinders for large logs, hardwood, knotty wood, and commercial firewood equipment. Bore size, rod diameter, working pressure, stroke length, and seal system can be customized according to the required splitting force.
5. Are log splitter hydraulic cylinders usually double acting?
Many log splitter hydraulic cylinders are double acting because the cylinder needs to push the ram forward and retract it after splitting. ZHY can manufacture double acting log splitter cylinders according to machine structure, pressure, stroke, and port layout.
6. How do I choose the bore size for a log splitter cylinder?
Bore size affects splitting force under a given hydraulic pressure. To choose the right bore, confirm target splitting force, hydraulic system pressure, wood type, machine frame, and pump capacity. ZHY can review these details before quotation.
7. Where can I buy wholesale log splitter hydraulic cylinders from China?
You can source wholesale log splitter hydraulic cylinders from ZHY in China for OEM equipment, repair markets, distributors, and hydraulic parts supply. As a manufacturer, supplier, and factory, ZHY supports drawing confirmation, custom production, pressure testing, export packing, and batch supply.
8. Does ZHY pressure test log splitter cylinders before shipment?
Yes. ZHY can perform pressure testing, leakage testing, and full-stroke movement checks before shipment. Testing helps confirm sealing performance, pressure holding, smooth push-return movement, and reliability before the cylinder reaches the splitter equipment or warehouse.
Need Custom Log Splitter Hydraulic Cylinders?
Send ZHY your drawing, old cylinder photos, machine type, bore size, rod diameter, stroke length, working pressure, mounting type, oil port details, splitting force requirement, and quantity. Our team will review your requirements before quotation.
ZHY supports wood splitter cylinders, firewood splitter cylinders, heavy-duty log splitter cylinders, double acting log splitter cylinders, replacement log splitter cylinders, OEM production, and wholesale log splitter hydraulic cylinders.
