Custom Hydraulic Cylinders
We provide engineered hydraulic cylinder solutions for construction, mining, agricultural, sanitation, and industrial equipment applications.
From custom-built welded hydraulic cylinders to replacement hydraulic cylinders based on technical drawings, ZHY supports OEM hydraulic cylinder manufacturing with precision machining, reliable pressure performance, and flexible production support.
Custom Hydraulic Cylinder Manufacturer & Supplier in China
ZHY manufactures custom hydraulic cylinders tailored for high-pressure applications, heavy-duty operating conditions, and industrial hydraulic solutions.
We support production of hydraulic cylinders based on technical drawings, application requirements, and replacement compatibility needs for OEM equipment manufacturers and hydraulic system suppliers.
You need more than a standard hydraulic cylinder supplier. At ZHY, you work directly with a custom hydraulic cylinder design manufacturer.
From prototype development to volume production of hydraulic cylinders based on technical drawings, you receive engineering support focused on reliability, dimensional consistency, and long-term hydraulic system performance.
Customized Hydraulic Cylinders Built to Your Specification
If your machine requires a strong load capacity, a welded cylinder may be suitable. If your equipment needs a long stroke in a limited space, a telescopic cylinder is usually a better choice. If easy maintenance is important, tie rod cylinders can be considered. For special machines, we can manufacture custom hydraulic cylinders according to your sample or technical drawing.
Drawings and samples accepted
Bore size and stroke length customization
Mounting style and surface treatment options
Material and seal selection support
Pressure testing before delivery
Support Low MOQ
What Can Be Customized?
Every custom hydraulic cylinder project starts with the right engineering specifications. You can customize bore diameter, stroke length, mounting structure, sealing systems, operating pressure, rod surface treatment, and installation dimensions according to your equipment requirements, hydraulic system layout, and working environment.
From custom-built hydraulic cylinders for heavy-duty industrial equipment to custom hydraulic cylinders solutions for OEM machinery manufacturers, you receive engineering support focused on performance, durability, sealing reliability, and long service life.
Custom Bore & Stroke Sizes and Stage
We can custom hydraulic cylinders with:
Bore diameters range: ≥20 mm ;
stroke lengths range: up to 6000 mm.
Stage range：single -6 stage cylinder.
If you have specific bore and stroke requirements, please send them to us for a custom-tailored solution.
Custom Pressure & Cylinder Structure
Working pressure ranges: up to 100MPa; Cylinder wall thickness, piston structure, rod strength, and welding design can be optimized according to your operating pressure, side load conditions, and heavy-duty hydraulic applications.
Custom Materials & Rod Surface Treatment
Materials: 45# steel, stainless steel, 27SiMn, or materials specified according to your special requirements.
Chrome plating: 3-5µm hard chrome plating is available, along with a dust cover for protection of the piston rod in humid and corrosive environments.
Custom Hydraulic Seals Options
Normally, we will select the right materials and brands based on your working conditions.
Sealing Materials: We offer PTFE, PU, NBR, and high-pressure sealing solutions.
Sealing Brands: We offer brands such as NOK seals, Hallite seals, and TYS seals and support your specified sealing brand.
Custom Multiple Installation Options
We support various mounting styles, including the following:
Trunnion mount, flange mount, clevis mount, foot mount, pivot mount, tang mount, and fixing mount hydraulic cylinders and other installation configurations you specify.
Custom Oil Port & Connection Design
Oil port position, thread type, rod end connection, closed length, extended length, and installation distance can be customized to fit your equipment design.
Custom OEM Branding
For machinery brands, distributors, and wholesale buyers, ZHY supports custom logo, labels, packaging, and product identification to fit your market.
Drawing-Based Manufacturing
Send us your drawings, samples, or technical requirements. ZHY manufactures custom varials of Hydraulic Cylinders to match your existing equipment and reduce replacement risk.
Need A Custom Hydraulic Cylinder Fast?
Whether you already have a complete drawing or just a basic concept, our engineering team can help you optimize production feasibility and provide a quotation within 24 hours.
Hydraulic Cylinder Types We Customize
Different machines require different hydraulic cyinder structures. ZHY manufactures custom hydraulic cyinders accordingto drawings, samples, installation requirements, and working conditions, helping buyers match the right cylinder type before production.
Welded Hydraulic Cylinders
Welded hydraulic cylinders are suitable for heavy-duty machinery, construction equipment, agricultural machines, sanitation vehicles, and compact installation spaces where strength and durability are important.
Telescopic Hydraulic Cylinders
Telescopic hydraulic cylinders are used when long stroke movement is required within limited installation length, such as dump trucks, lifting systems, trailers, and special machinery.
Tie Rod Hydraulic Cylinders
Tie rod hydraulic cylinders are often used in industrial equipment, automation systems, presses, lifting devices, and applications that require easier maintenance and stable structure.
Double-Acting Hydraulic Cylinders
Double-acting hydraulic cylinders provide controlled movement in both extension and retraction directions, making them suitable for equipment that requires stable force and repeatable operation.
Application-Based Custom Hydraulic Cylinder Solutions
Different hydraulic applications require different cylinder structures, sealing systems, pressure resistance, and surface protection. ZHY custom hydraulic cylinders can be engineered according to operating environments, movement direction, load conditions, and hydraulic system requirements across various industries.
Custom Cylinders for Excavator Cylinders
Excavator hydraulic cylinders often work under high-pressure, heavy-load, and continuous impact conditions. Side loading, dust contamination, rod scoring, and seal wear are common problems in construction environments. We manufacture rugged excavator cylinders with precision-machined components, wear-resistant rod surfaces, and reliable sealing systems to help improve pressure stability and reduce downtime in demanding applications.
Custom Cylinders for Mining Equipment
Mining equipment hydraulic cylinders require heavy-duty performance under extreme load, dust, vibration, and harsh operating conditions. High-pressure applications often create challenges such as structural fatigue, pressure instability, and accelerated wear. We produce mining hydraulic cylinders with rugged welded fabrication, precision honing, and high-strength materials to support reliable operation and extended service life in continuous heavy-duty environments.
Custom Cylinders for Agricultural Machinery
Agricultural hydraulic cylinders must operate reliably in mud, moisture, vibration, and outdoor environments. Corrosion, unstable movement, and early seal failure can affect machine efficiency during long working hours. Our agricultural machinery cylinders are designed with corrosion-resistant materials, stable welded construction, and smooth operation performance for tractors, harvesters, sprayers, and other farming equipment applications.
Custom Cylinders for Marine Applications
Marine hydraulic cylinders must withstand corrosion, humidity, salt spray, and unstable offshore operating conditions. Material selection and sealing compatibility are critical for long-term performance in marine applications. We support custom marine hydraulic cylinder fabrication using corrosion-resistant materials, hard chrome plated rods, and reliable sealing systems to help improve durability and reduce maintenance frequency in harsh marine environments.
Custom Cylinders for Material Handling Equipment
Material handling equipment requires hydraulic cylinders with smooth operation, stable lifting performance, and precise movement control. Frequent cycling and continuous operation can lead to leakage, pressure loss, and abnormal wear over time. Our material handling cylinders are designed with low-friction sealing systems, precision dimensional control, and reliable pressure performance to help improve operational stability for forklifts, lifting platforms, and automated handling systems.
Custom Cylinders for Sanitation Vehicle
Sanitation vehicles must handle frequent operation cycles, heavy loads, outdoor exposure, and unstable working environments. Problems such as oil leakage, rod corrosion, pressure instability, and premature seal wear are common in waste collection and lifting systems. We manufacture sanitation vehicle cylinders with rugged welded construction, corrosion-resistant surface treatment, reliable sealing systems, and stable hydraulic performance to support smooth lifting, compaction, and tipping operations under continuous daily use.
We Help You Avoid These Problems
| Common Problem | Possible Cause | How ZHY Helps you Avoid It |
|---|---|---|
| Oil Leakage | Oil leakage may happen when the seal material, seal structure, piston rod surface, machining tolerance, or pressure rating is not properly matched to the actual working condition. | As a custom hydraulic cylinder manufacturer, ZHY reviews seal type, seal brand options, oil type, working pressure, temperature, rod surface treatment, and leakage testing requirements before production. |
| Weak Lifting or Pushing Force | If the bore size, rod diameter, wall thickness, or working pressure is not correctly selected, the cylinder may fail to provide enough force under real machine load. | ZHY helps confirm bore size, stroke length, rod diameter, pressure rating, load direction, and application environment to support more stable force output. |
| Installation Mismatch | Wrong closed length, extended length, mounting distance, oil port position, thread type, or rod end connection can cause installation failure. | As a custom hydraulic cylinder supplier, ZHY checks drawings, samples, mounting methods, clevis dimensions, flange structure, trunnion position, and oil port direction before manufacturing. |
| Rod Corrosion | Outdoor, marine, humid, dusty, or chemical environments can damage the piston rod surface and shorten cylinder service life. | ZHY recommends suitable piston rod material, chrome plating thickness, surface coating, and corrosion-resistant protection based on the working environment. |
| Dimensional Inconsistency | Poor dimensional tolerance and unstable machining quality often create assembly difficulties, abnormal wear, vibration, and sealing problems. | We apply strict inspection standards and precision manufacturing processes to help maintain consistent bore size, rod concentricity, and component compatibility for smoother hydraulic cylinder operation. |
| Unstable Movement | Unstable extension or retraction may be caused by poor internal matching, unsuitable seals, insufficient guiding support, incorrect oil flow, or machining inconsistency. | ZHY controls machining accuracy, assembly quality, seal matching, guide component selection, and stroke movement testing before shipment. |
| Early Cylinder Failure | Early failure may result from wrong material selection, weak welding, insufficient pressure testing, unsuitable coating, or ignoring the real operating frequency. | As a custom hydraulic cylinder factory, ZHY supports material review, welding control, dimensional inspection, pressure testing, and export packing for OEM and wholesale orders. |
| Short Service Life | A cylinder may wear out faster if pressure, working cycles, surface treatment, seal performance, and application conditions are not considered together. | ZHY helps you review the full working condition instead of only copying cylinder size, reducing the risk of repeated replacement and maintenance. |
Custom Hydraulic Cylinder Manufacturing Process
Every custom hydraulic cylinder goes through a complete manufacturing and inspection process before delivery. From engineering review to pressure testing, each production step is arranged according to hydraulic system requirements and OEM quality standards.

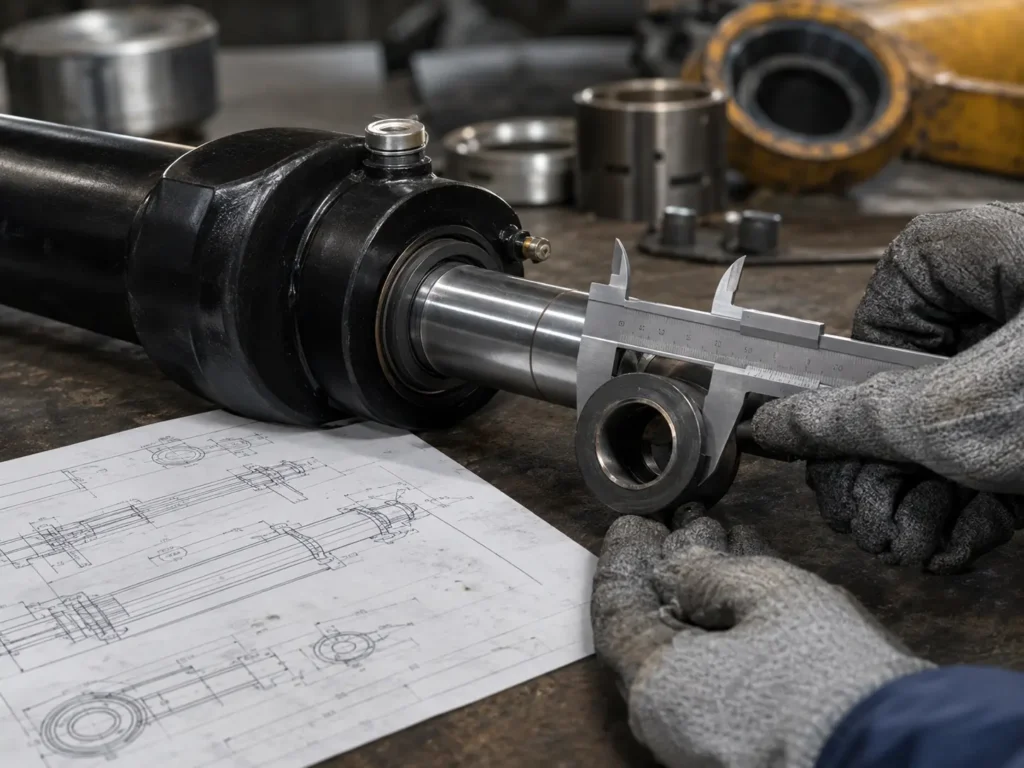

Send Your Drawing or Requirements
You can send your technical drawings, hydraulic cylinder specifications, working pressure, stroke length, mounting style, or equipment application requirements for engineering evaluation.
Engineering Review &Technical Confirmation
Our engineering team reviews cylinder structure, sealing systems, materials, operating conditions, and installation dimensions to confirm manufacturing feasibility and hydraulic system performance.

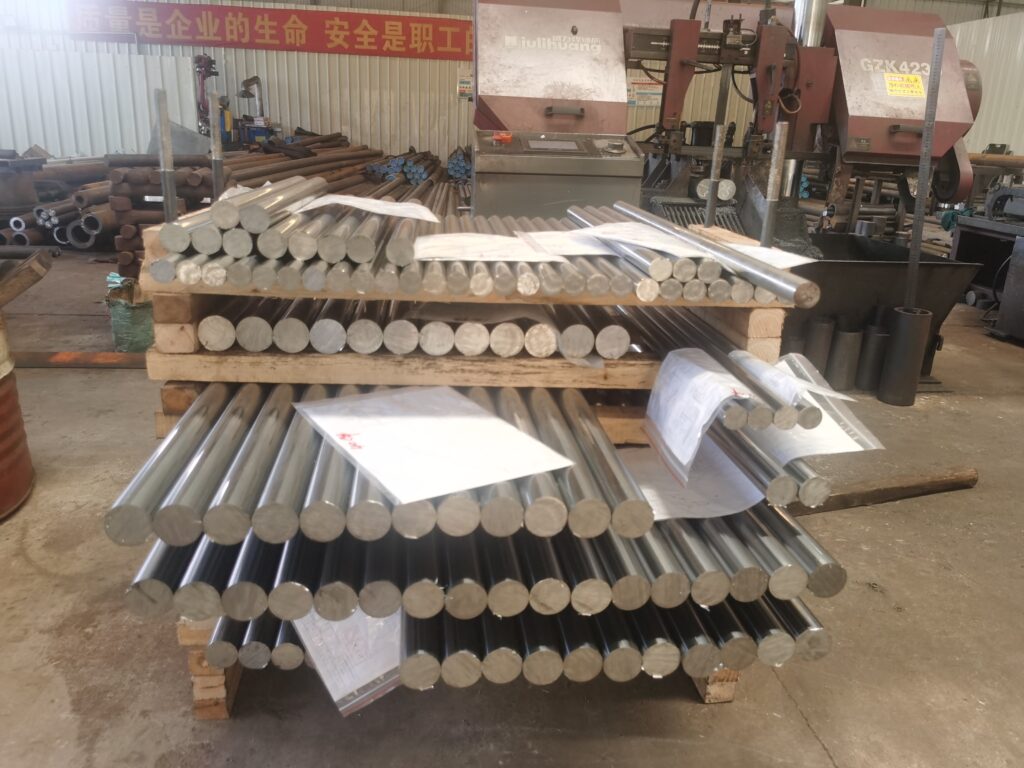

Material Preparation &CNC Machining
Cylinder tubes, piston rods, and steel components are prepared according to technical requirements. Precision CNC machining and honing processes help ensure dimensional accuracy and sealing performance.
Welding, Assembly &Surface Treatment
Welded cylinder structures, mounting components, and hydraulic assemblies are completed according to pressure requirements and operating environments. Hard chrome plating, painting, and corrosion-resistant surface protection are arranged based on application conditions.

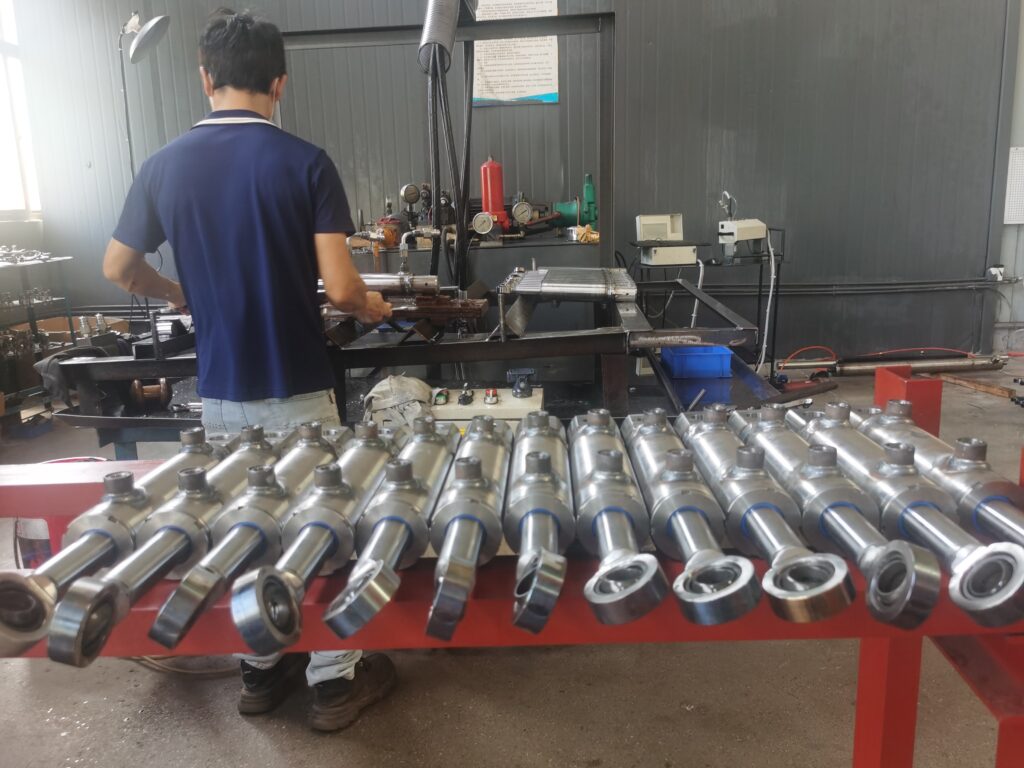

Pressure Testing &Final Inspection
Each hydraulic cylinder is tested at 1.5X the working pressure for pressure-testing and pressure-holding tests before shipment. dimensional accuracy, sealing stability, and movement performance before packaging and shipment to help ensure reliable hydraulic system operation under actual working environments.
Reliable Quality & Pressure Performance Testing
Stable hydraulic cylinder quality starts with controlled manufacturing processes and complete inspection standards. ZHY supports hydraulic cylinder quality verification according to OEM requirements, operating environments, and hydraulic system performance standards.
100% Hydraulic Pressure Testing
Each hydraulic cylinder must be tested according to working pressure 1.5x testing and test pressure requirements before shipment.
Dimensional Inspection
Critical dimensions, including bore diameter, rod diameter, installation size, and mounting tolerance, are inspected during production.
Welding Quality Inspection
Cylinder welding structures are inspected to help ensure pressure resistance and structural reliability.
Leakage Testing
Hydraulic sealing performance and leakage control are inspected before shipment.
Material Traceability
Raw material batches and manufacturing processes can be tracked according to project requirements.
Frequently Asked Questions
We support flexible 1 set MOQ for custom hydraulic cylinders. Prototype and small-batch production are available for OEM projects, testing, replacement applications, and new equipment development requirements.
Production time depends on cylinder size, structure, and quantity. Prototype production usually takes 7–15 days, while regular batch orders generally require 15–30 days after drawing confirmation and technical approval.
Yes. ZHY supports prototype hydraulic cylinder production and small-batch manufacturing for OEM projects, equipment testing, and drawing verification before mass production begins.
Hydraulic cylinder seals are selected according to working pressure, operating temperature, hydraulic oil type, movement speed, friction requirements, and equipment operating environments to ensure reliable sealing performance and service life.
Hydraulic cylinder leakage can be reduced through proper sealing selection, precision machining, stable rod surface treatment, and suitable sealing structures based on pressure, operating speed, temperature, and working conditions.
