Crane Hydraulic Cylinders
Cranes hydraulic cylinders support stable lifting, controllable boom movement, long-stroke extension, outrigger leveling, and safe load handling.
We customize crane hydraulic cylinders for boom lifting, telescopic boom extension, outrigger support, hydraulic lifting motion, luffing control, OEM replacement, and wholesale supply of crane parts.
Crane Hydraulic Cylinder Manufacture & Supplier
ZHY is a manufacturer, supplier, factory, and wholesale partner of hydraulic cylinders for mobile and industrial cranes in China. We customize hydraulic cylinders for crane manufacturers, hydraulic system integrators, repairers, and distributors, suitable for truck cranes, crawler cranes, all-terrain cranes, rough terrain cranes, and marine cranes, providing OEM manufacturing, high-pressure testing, rapid production, and global delivery services. Our crane hydraulic cylinders can operate under high loads, high pressures, and stringent safety requirements.
Main Hydraulic Cylinders Used in Cranes
Different crane movements require different cylinder designs. ZHY helps you confirm whether the cylinder is mainly used for lifting, extension, stabilization, or replacement repair.

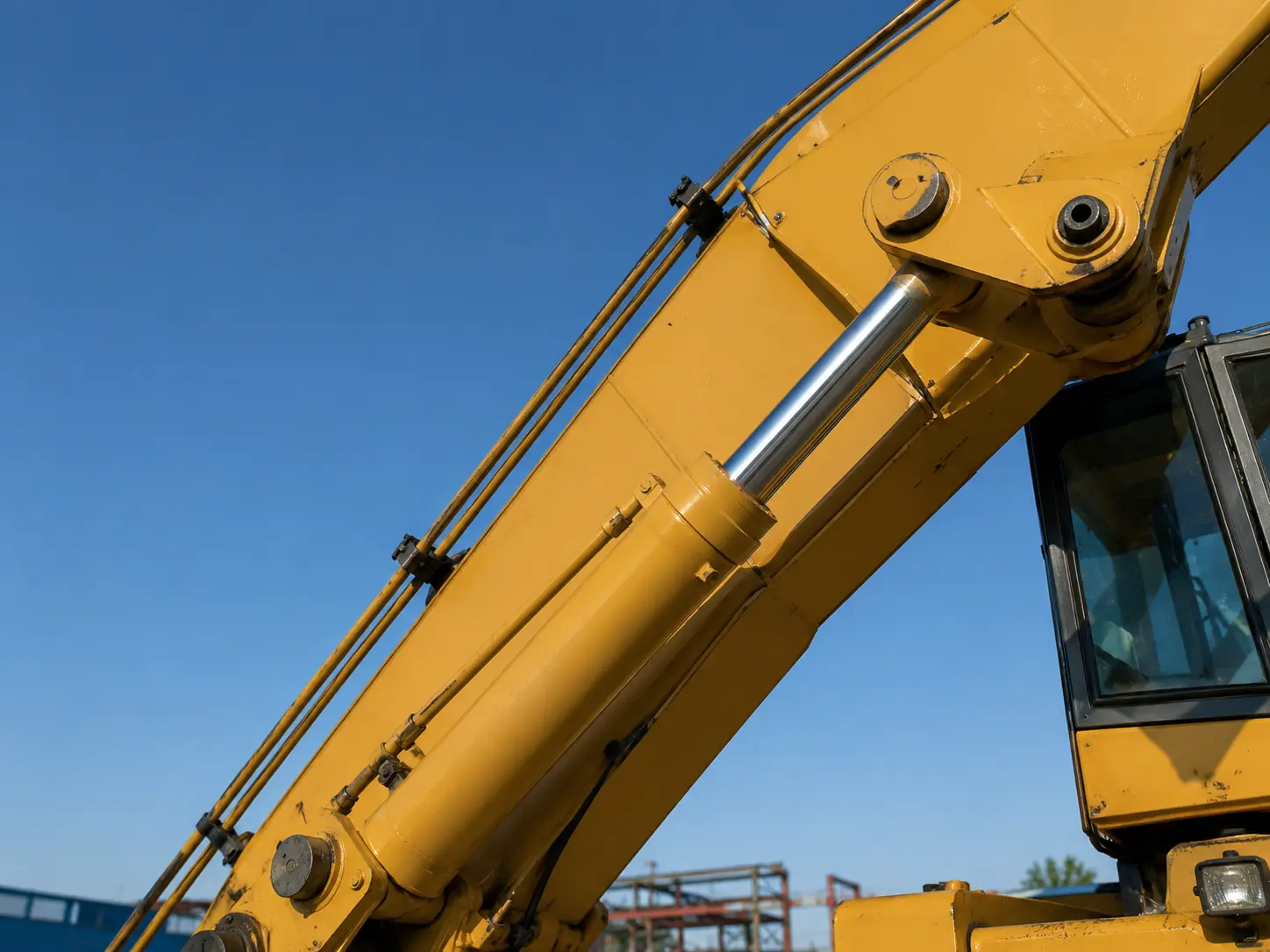

Boom Lift Hydraulic Cylinder
Crane boom lift cylinders need stable force output, pressure holding, and strong mounting support during lifting and lowering.

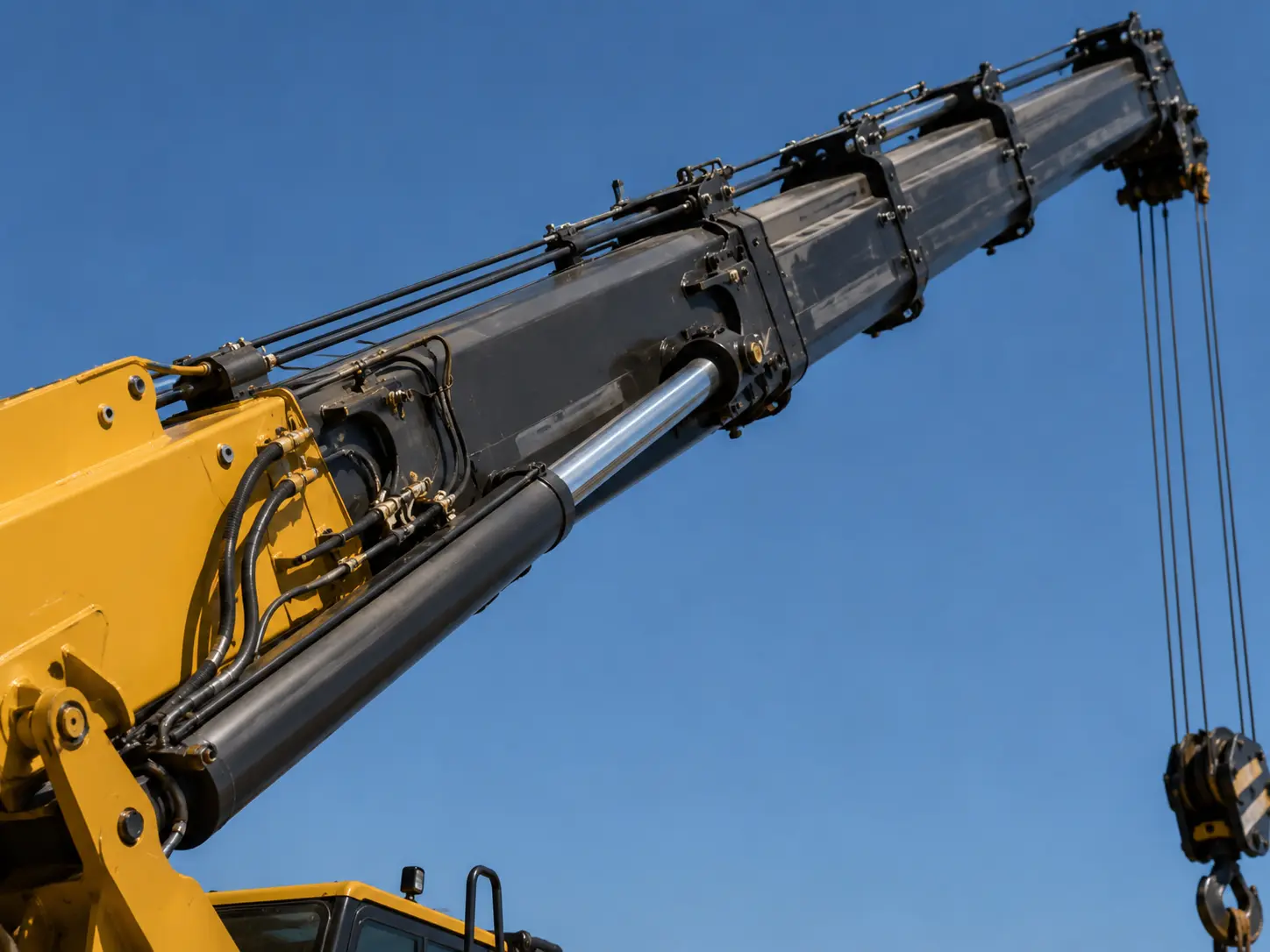

Telescopic Boom Hydraulic Cylinder
Crane telescopic boom cylinders for cranes need long-stroke accuracy, smooth extension, and reliable sealing performance.

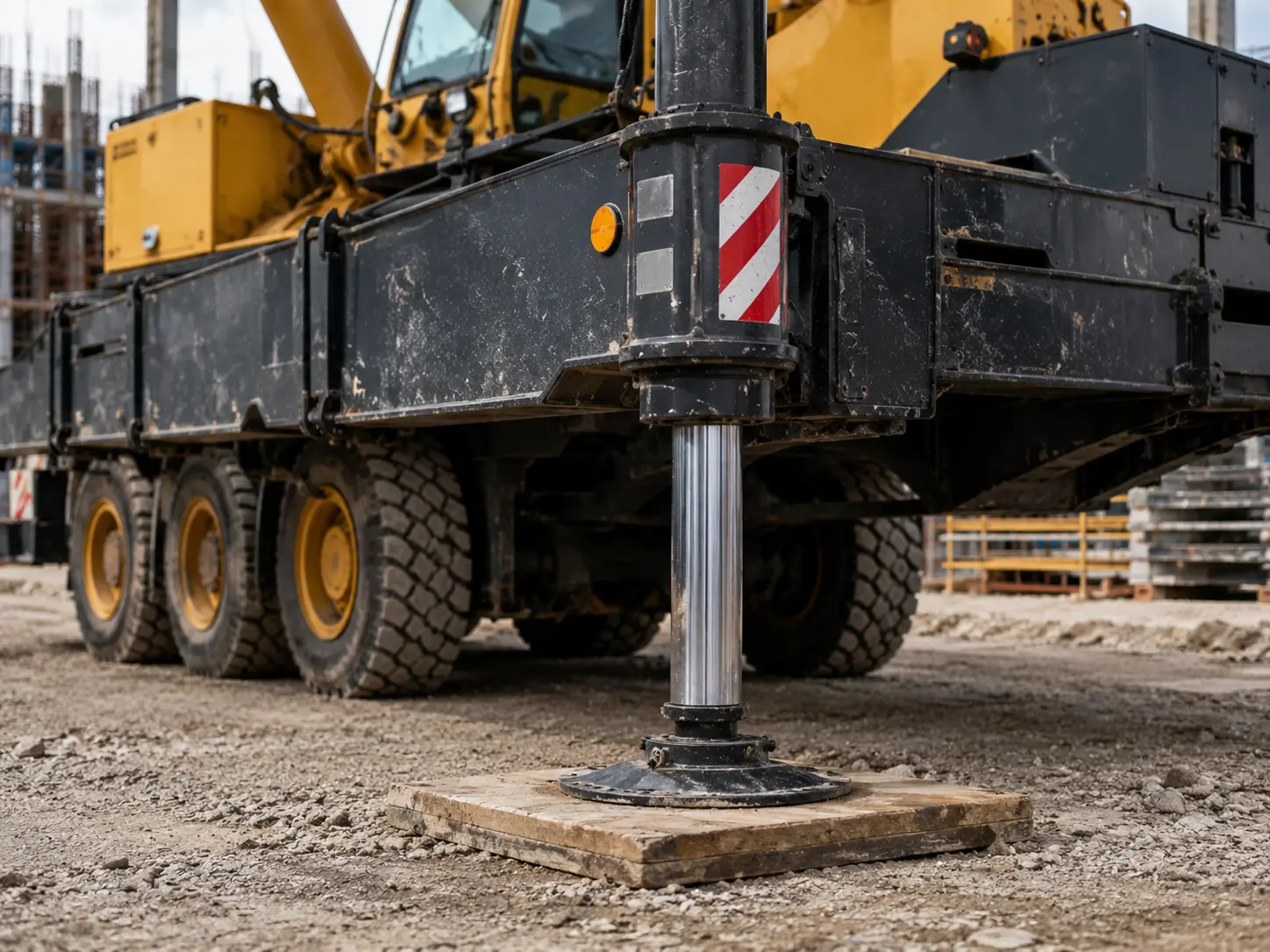

Outrigger Hydraulic Cylinder
Crane outrigger cylinders need load holding, rod protection, leakage resistance, and stable ground support.

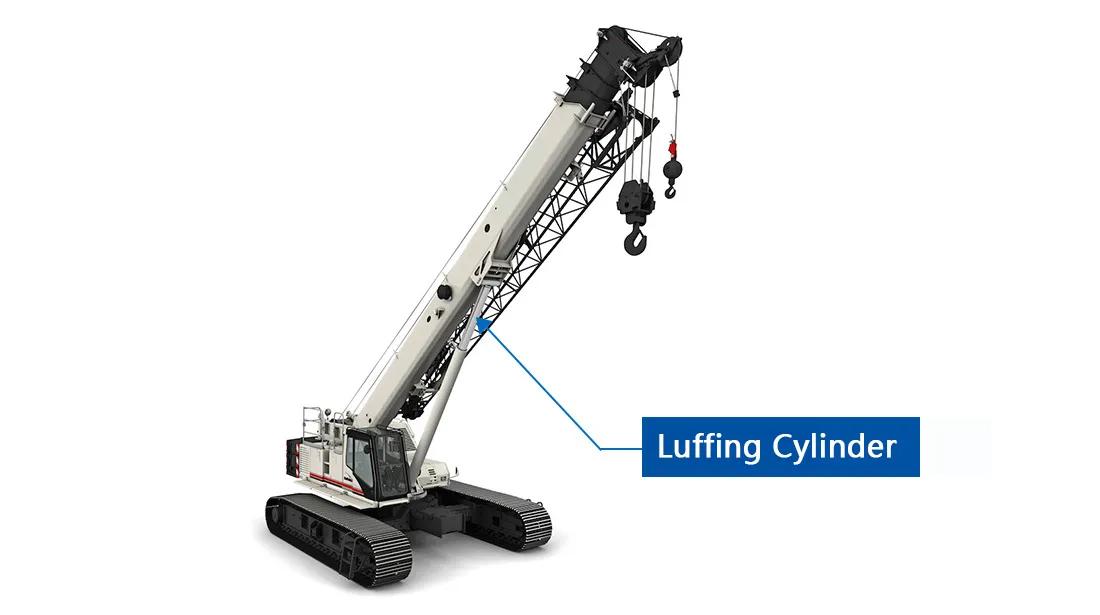

Luffing Hydraulic Cylinder
Crane luffing cylinders need precise angle control, stable force output, reliable sealing, and smooth boom positioning.

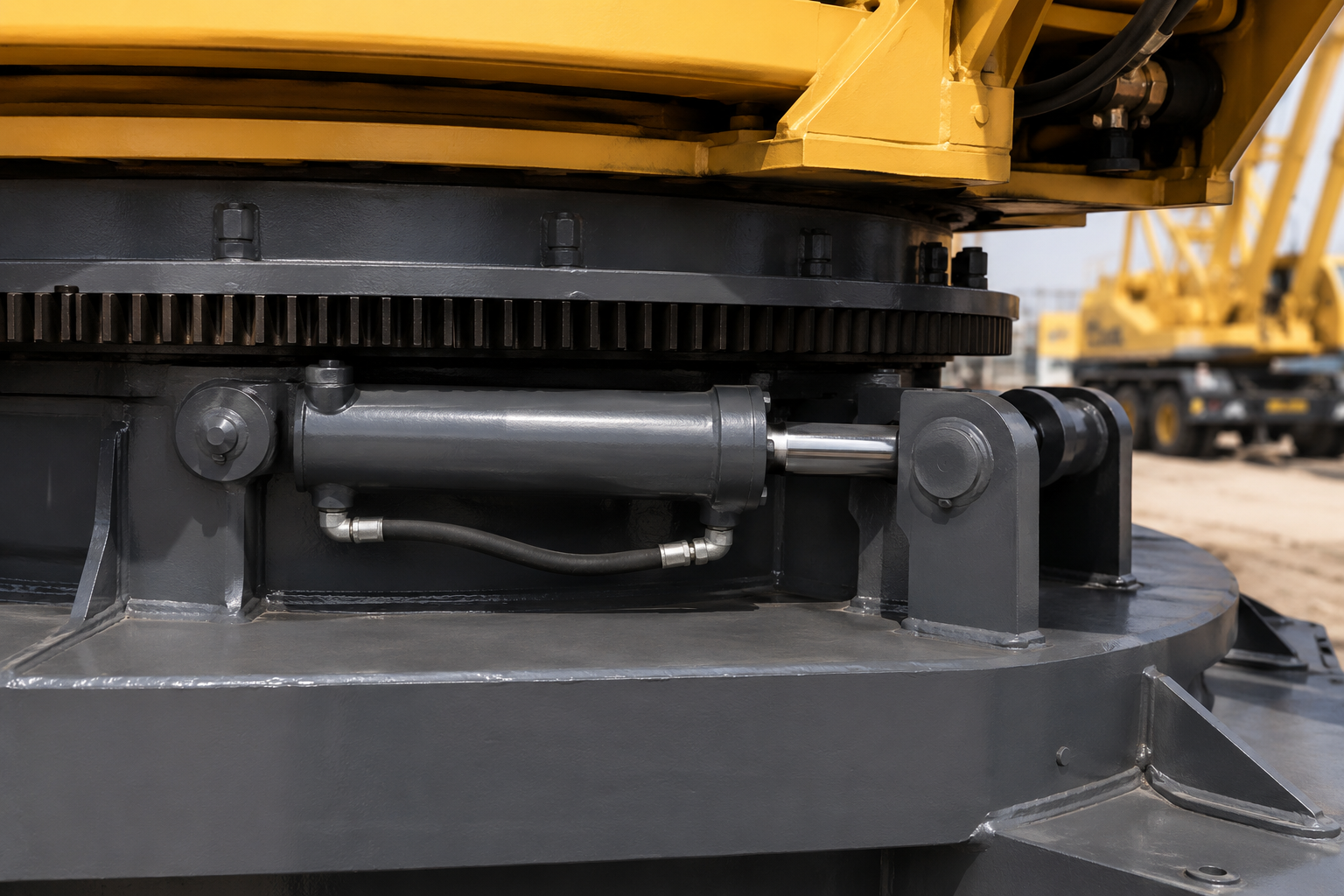

Slewing Lock Hydraulic Cylinder
Locks rotating mechanisms securely during transportation and operation.

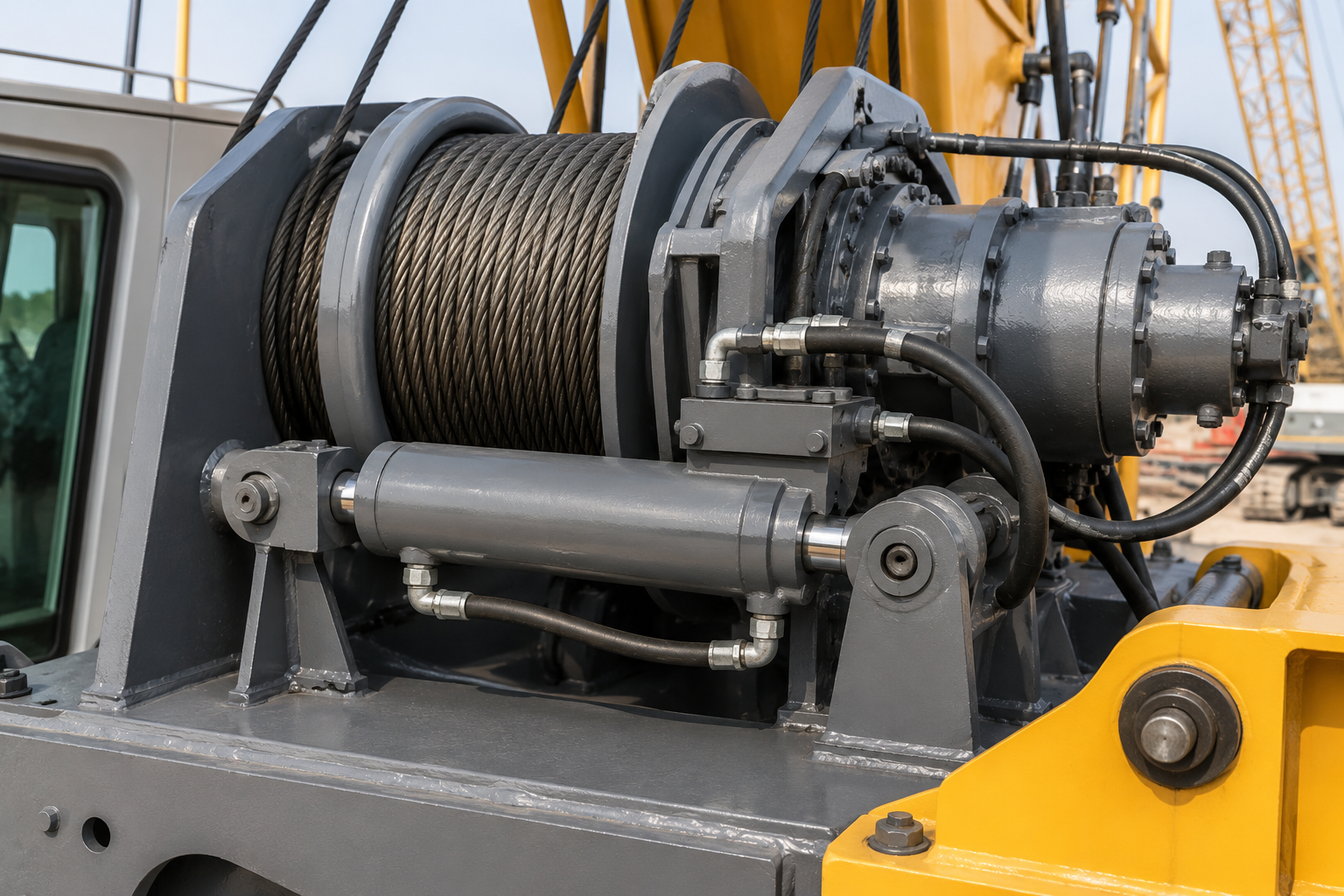

Hook Winch Hydraulic Cylinder
Supports auxiliary hydraulic mechanisms in heavy-duty lifting systems.
Hydraulic Cylinder Solutions for Crane Systems
ZHY supplies hydraulic cylinders for different crane movement systems. Each system has different requirements for force, stroke, holding performance, rod strength, and installation accuracy.

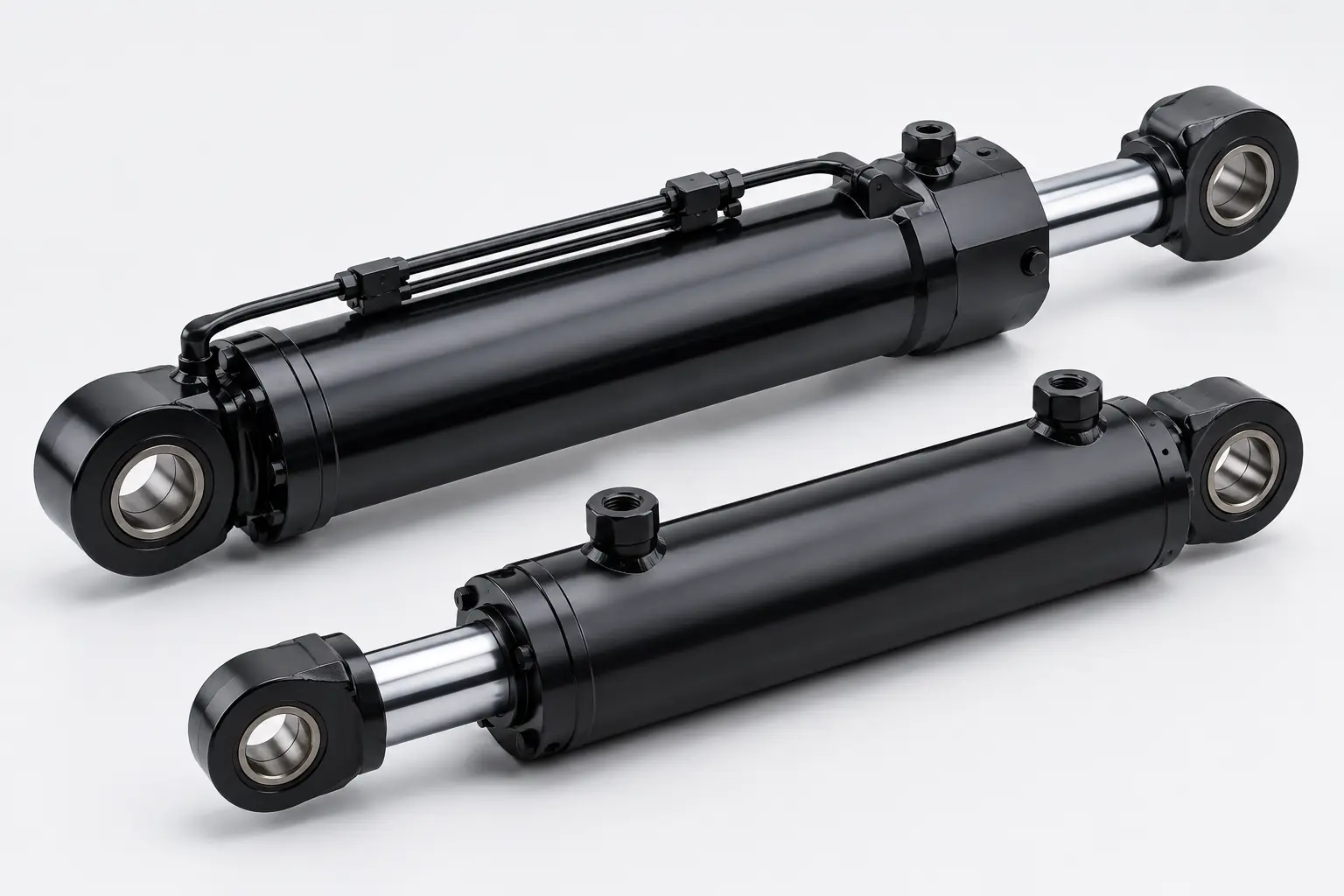

Boom Lift and Luffing Cylinders
A crane boom lift cylinder controls upward and downward boom movement, while a crane luffing cylinder adjusts boom angle for lifting radius and working height control.
- Recommended for: mobile cranes, crawler cranes, marine cranes, loader cranes, and truck-mounted cranes.
- Key concerns: rated pressure, rod strength, mounting load, pressure holding, and smooth lowering control.
- Customization: bore size, rod diameter, stroke length, mounting type, seals brand,oil port position, and surface treatment.

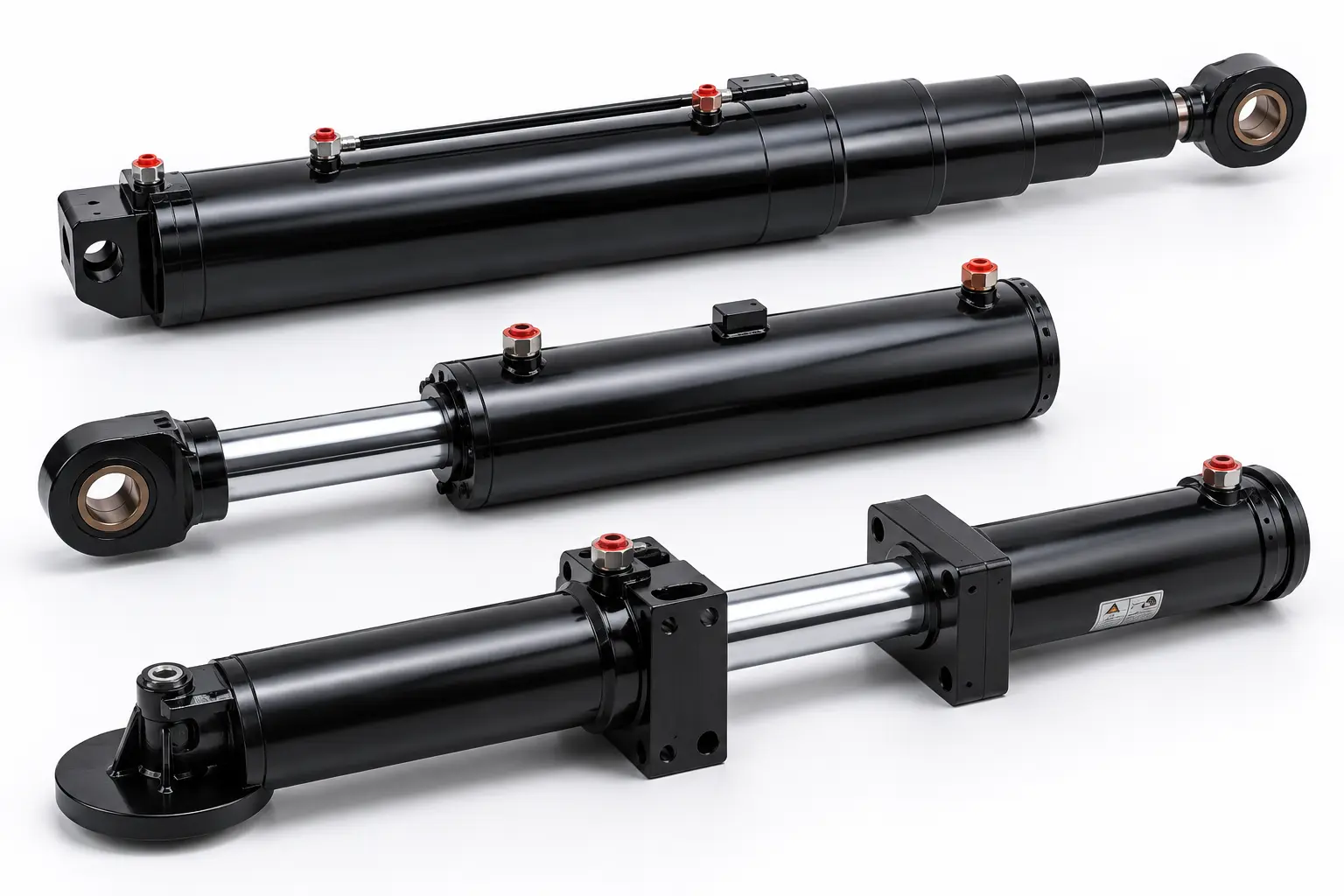

Telescopic Boom and Outrigger Cylinders
A telescopic boom cylinder for crane extends and retracts boom sections, while a crane outrigger cylinder supports machine leveling and ground stabilization before lifting.
- Recommended for: mobile cranes, truck cranes, loader cranes, and equipment rebuild projects.
- Key concerns: long-stroke accuracy, cylinder drift, internal leakage, rod corrosion, and load holding stability.
- Customization: open length, closed length, pin size, port direction, seal system, and anti-corrosion protection.
Hydraulic Cylinder Solutions for Different Crane Types
ZHY customizes crane hydraulic cylinders for lifting equipment, repair markets, OEM crane production, and heavy-duty construction machinery applications.
Mobile Cranes
Truck-Mounted Cranes
Crawler Cranes
Marine Cranes
Loader Cranes
Rough Terrain Cranes

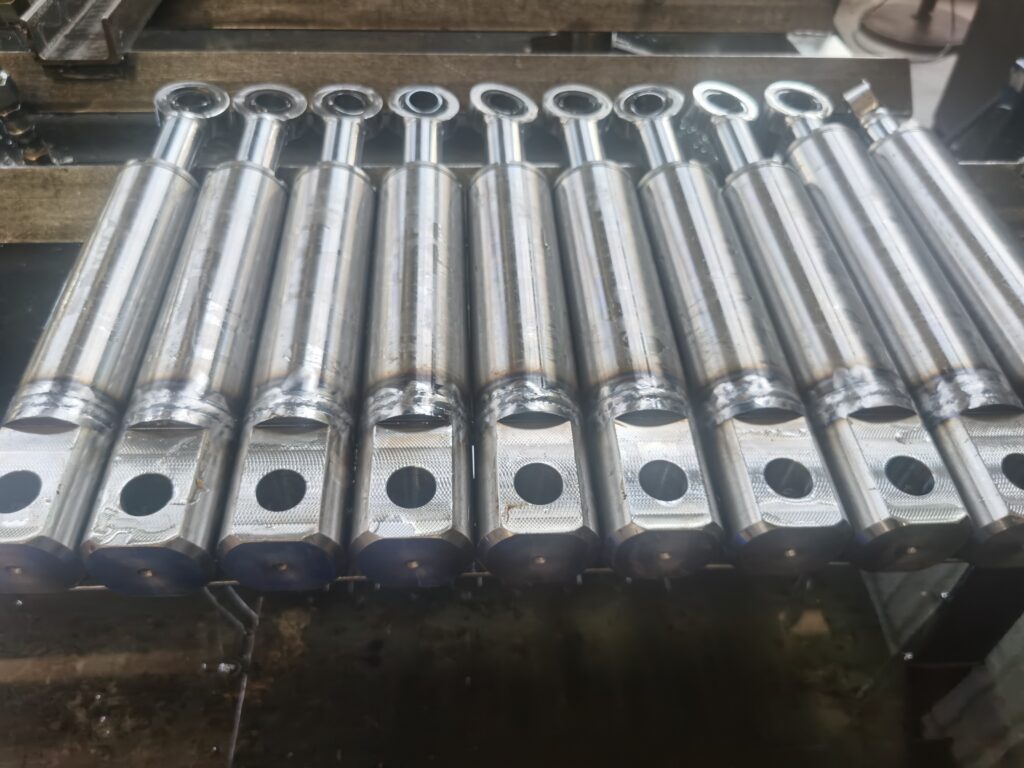

OEM Custom Hydraulic Cylinder
Every crane project has unique operating requirements. As an experienced custom crane hydraulic cylinder manufacturer, ZHY offers OEM and ODM solutions based on your drawings or technical specifications.
We customize bore size, stroke, rod diameter, mounting type, working pressure, port configuration, sealing system, surface treatment, paint color, logo, and export packaging to ensure perfect compatibility with your equipment. Whether you need a custom hydraulic cylinder for crane solutions for OEM & Aftermarket, our engineering team provides fast design support, precision manufacturing, and strict quality control from prototype to mass production.
Custom Crane Hydraulic Cylinder Options
For custom crane hydraulic cylinders, accurate parameters help shorten quotation time and reduce installation risk.
| Custom Item | ZHY Manufacturing Support | Buyer Notes |
|---|---|---|
| Cylinder Function | Boom lift, telescopic boom, outrigger, luffing, jib, replacement crane cylinder | Choose according to crane movement and load condition. |
| Bore Diameter | Customized according to required force output and hydraulic pressure | Larger bore provides higher force under the same pressure. |
| Rod Diameter | Heavy-duty rod design for lifting, holding, and side-load applications | Important for boom and outrigger cylinders. |
| Stroke Length | Custom stroke based on open length and closed length | Critical for telescopic boom and outrigger movement. |
| Working Pressure | Designed according to rated pressure and peak pressure | Confirm hydraulic system pressure before production. |
| Mounting Type | Clevis, pin eye, trunnion, flange, lug, or special mounting | Must match crane frame and boom structure. |
| Seal System | High-pressure, dust-resistant, and temperature-resistant seal options | Helps reduce leakage and cylinder drift. |
| Rod Surface | Hard chrome plating and anti-corrosion treatment | Recommended for outdoor and marine crane use. |
| Oil Port | Thread type, position, angle, and port orientation customization | Important for hose connection and installation clearance. |
| Order Type | OEM, replacement, small-batch, and wholesale crane hydraulic cylinders | Suitable for crane manufacturers, distributors, and repair markets. |
Reliable Manufacturing and Quality Control
ZHY Hydraulic provides hydraulic cylinder solutions for heavy-duty equipment, mobile machinery, industrial systems, and custom OEM applications. Our manufacturing process focuses on strength, sealing performance, machining accuracy, welding reliability, corrosion resistance, and maintenance-friendly design.
High-Strength Materials
Hydraulic cylinders can be manufactured with high-strength steel tubes and chrome-plated piston rods to improve wear resistance, load capacity, and service life in demanding working conditions.
Precision Machining
Controlled machining accuracy helps reduce internal friction, improve sealing contact, support smooth movement, and extend cylinder operating life.
Advanced Sealing Systems
Seal selection can be adjusted according to pressure, temperature, movement frequency, contamination risk, and working environment to reduce leakage and early seal failure.
100% Pressure Tested
Every cylinder undergoes rigorous hydraulic fluid power testing for proof pressure and internal/external leakage before leaving our manufacturing facility.
Heavy-Duty Welding
Strong welding quality is important for end caps, clevis mounts, trunnions, brackets, and other load-bearing structures, especially in construction, mining, lifting, and truck applications.
Custom Engineering
Bore size, stroke length, rod diameter, mounting type, port position, pressure rating, surface treatment, and cylinder structure can be customized according to drawings, samples, or working parameters.
Corrosion Resistance
Painting, plating, coating, and surface treatment options help protect hydraulic cylinders used in outdoor, marine, agricultural, and harsh industrial environments.
Maintenance-Friendly Design
Proper gland design, standardized wear parts, accessible seals, and clear technical confirmation can help reduce maintenance difficulty and equipment downtime.
Common Problems and ZHY Solutions
Many crane cylinder problems come from wrong sizing, poor sealing, insufficient pressure holding, rod surface damage, side load, or inaccurate installation dimensions. ZHY reviews application details before production to reduce these risks.
| Common Problem | Possible Consequence | ZHY Solution |
|---|---|---|
| Cylinder drift under load | Boom or outrigger position changes during operation | ZHY improves sealing design, piston fit, and pressure holding performance. |
| Oil leakage | Seal wear, rod damage, poor surface finish, or contamination | ZHY selects proper seals, controls rod surface quality, and checks leakage before shipment. |
| Slow or unstable boom movement | Wrong bore size, internal leakage, poor alignment, or hydraulic mismatch | ZHY confirms force, stroke, pressure, and installation dimensions before production. |
| Telescopic boom extension problem | Wrong stroke, poor machining, or excessive seal resistance | ZHY reviews open length, closed length, stroke, and boom structure. |
| Outrigger cylinder cannot hold load | Internal leakage, weak seal system, or insufficient pressure capacity | ZHY recommends suitable sealing and pressure-tested assembly. |
| Rod rust or scoring | Outdoor exposure, poor chrome plating, mud, rain, or marine environment | ZHY supports hard chrome rods, anti-corrosion treatment, and export packing. |
| Replacement cylinder cannot fit | Wrong pin size, mounting width, stroke, or oil port direction | ZHY checks drawings, photos, and key measurements before production. |
Frequently Asked Questions
1. What is a crane hydraulic cylinder used for?
A crane hydraulic cylinder is used to control boom lifting, telescopic boom extension, luffing movement, outrigger support, jib adjustment, and other crane functions. It helps the crane lift, extend, stabilize, and position loads during construction, transport, marine, and industrial lifting operations.
2. What types of hydraulic cylinders are used on cranes?
Common crane cylinders include crane boom lift cylinders, telescopic boom cylinders, outrigger cylinders, luffing cylinders, jib cylinders, and replacement crane hydraulic cylinders. The correct type depends on crane structure, lifting function, stroke length, working pressure, and installation dimensions.
3. Can ZHY manufacture replacement hydraulic cylinders for old cranes?
Yes. ZHY can manufacture a replacement crane hydraulic cylinder when original parts are unavailable, expensive, or slow to deliver. Buyers can send drawings, old cylinder photos, pin-to-pin length, bore diameter, rod diameter, stroke length, mounting width, pin hole size, oil port details, crane model, and working pressure for review.
4. What information should I provide for a custom crane hydraulic cylinder quote?
For a faster quote, please provide bore diameter, rod diameter, stroke length, closed length, open length, working pressure, mounting type, pin diameter, oil port size, cylinder function, quantity, crane model, and application environment. If you do not have a drawing, clear photos and key measurements can also help.
5.Which crane brands can you replace?
We manufacture replacement cylinders compatible with many leading crane brands based on customer specifications.
6. Do you provide prototype samples?
Yes. Prototype production is available before mass manufacturing.
7. Where can I buy wholesale crane hydraulic cylinders from China?
You can source wholesale crane hydraulic cylinders from ZHY in China for OEM equipment, repair markets, distributors, and construction machinery parts supply. As a manufacturer, supplier, and factory, ZHY supports drawing confirmation, custom production, batch consistency control, pressure testing, export packing, and long-term cooperation.
8. Does ZHY pressure test crane hydraulic cylinders before shipment?
Yes. ZHY can perform pressure testing, leakage testing, and full-stroke movement checks before shipment. Testing helps confirm sealing performance, movement stability, pressure holding, and reliability before the cylinder reaches the buyer’s crane or warehouse.
Need a Reliable Crane Hydraulic Cylinder Manufacturer?
Whether you need replacement cylinders or fully customized OEM solutions, ZHY provides durable hydraulic cylinders engineered for demanding lifting applications. Contact our engineering team today to discuss your project and receive a fast quotation.
ZHY supports crane boom lift cylinders, telescopic boom cylinders, crane outrigger cylinders, luffing cylinders, replacement crane cylinders, OEM production, and wholesale crane hydraulic cylinders.
