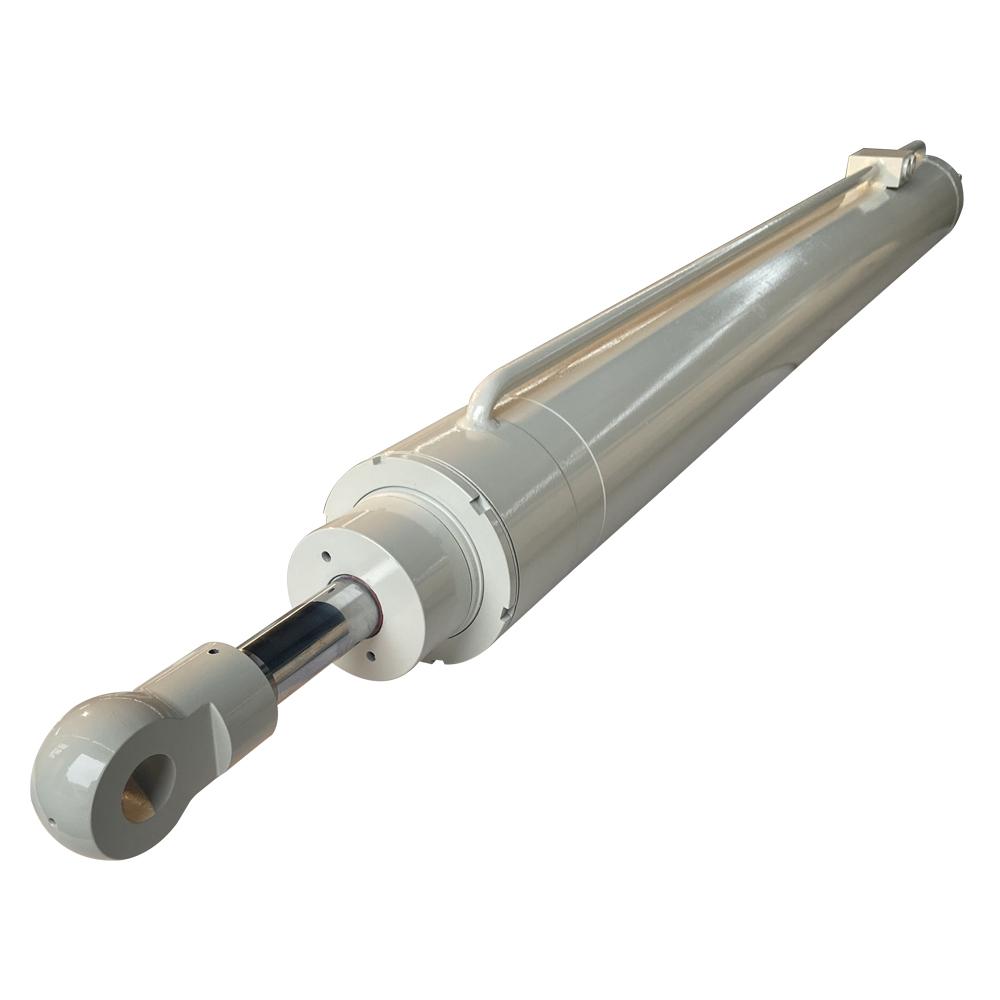

Tunnel Boring Machine Hydraulic Cylinders
Engineered for extreme underground conditions, ZHY Hydraulic manufactures heavy-duty tunnel boring machine hydraulic cylinders for thrust, steering, gripper, segment erector, articulation, and other critical TBM systems. Every cylinder is built for high pressure, continuous operation, and long service life, with OEM manufacturing available according to your drawings or technical specifications.
✓ Heavy-Duty Welded Construction
✓ Large Bore & Long Stroke
✓ High Pressure up to 35 MPa+
✓ OEM & Custom Manufacturing
✓ Premium Sealing Systems
✓ 100% Pressure Tested
Reliable Hydraulic Cylinders for Demanding Underground Construction Projects

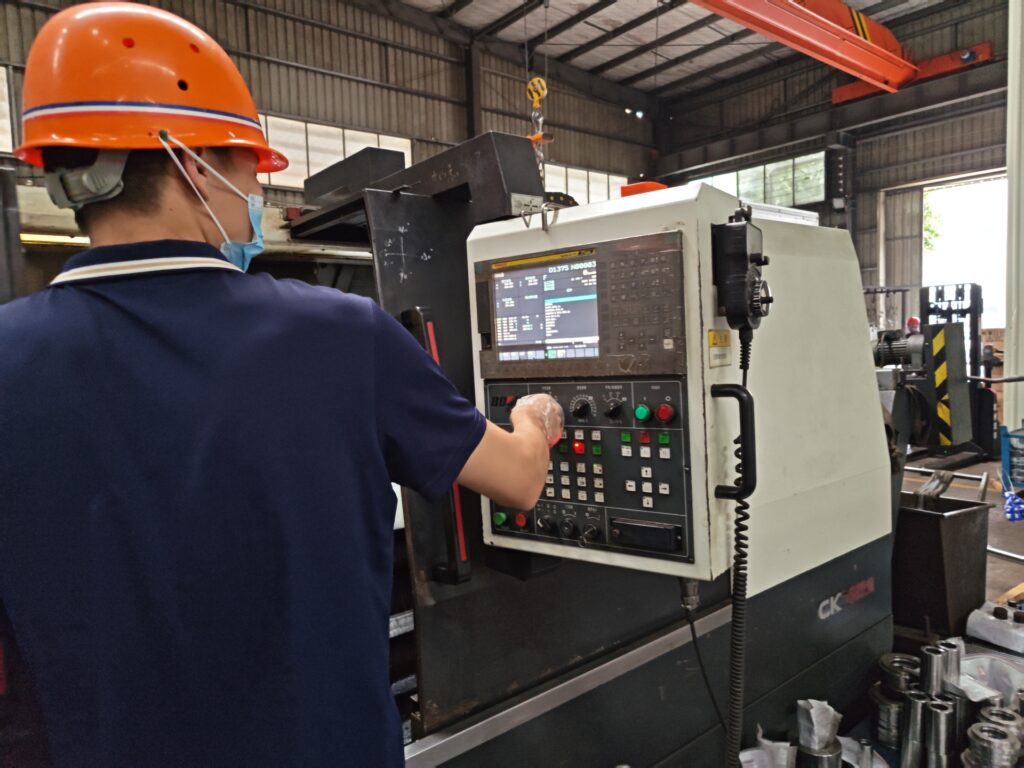

Tunnel Boring Machine Hydraulic Cylinder Manufacturer In China
ZHY Hydraulic is an experienced tunnel boring machine hydraulic cylinder manufacturer specializing in OEM and custom hydraulic cylinders for TBM manufacturers, underground construction equipment companies, engineering contractors, and hydraulic system suppliers worldwide. We manufacture heavy-duty thrust cylinders, steering cylinders, gripper cylinders, articulation cylinders, segment erector cylinders, and other custom hydraulic cylinders designed to perform reliably under high pressure, heavy loads, abrasive environments, and continuous underground operation.
Whether you require a direct replacement cylinder or a completely custom hydraulic solution, our engineering team manufactures every cylinder according to your drawings, technical specifications, or performance requirements to help maximize equipment reliability and reduce costly downtime.
What Are Tunnel Boring Machine Hydraulic Cylinders?
Tunnel boring machine hydraulic cylinders are heavy-duty hydraulic actuators that provide the force and motion required for nearly every major function of a tunnel boring machine (TBM). They are responsible for pushing the machine forward, steering the shield, gripping the tunnel wall, positioning precast concrete segments, adjusting articulated sections, and supporting other hydraulic movements throughout the tunneling process.
Unlike conventional industrial hydraulic cylinders, TBM hydraulic cylinders operate in some of the harshest working environments. Continuous heavy loads, high hydraulic pressure, abrasive rock dust, mud, groundwater, vibration, and around-the-clock operation place exceptional demands on cylinder strength, sealing performance, machining accuracy, and service life.
Quick Summary
| Item | Description |
|---|---|
| Equipment | Tunnel Boring Machine (TBM) |
| Typical Pressure | 25–35 MPa (application dependent) |
| Cylinder Types | Thrust, Steering, Gripper, Segment Erector, Articulation, Conveyor |
| Working Environment | Underground, mud, dust, moisture, high load |
| Manufacturing | OEM & Custom |
| Testing | 100% Hydraulic Pressure Tested |
Custom Hydraulic Cylinders for Tunnel Boring Machines
As an experienced tunnel boring machine hydraulic cylinder manufacturer, ZHY Hydraulic produces a complete range of OEM and custom hydraulic cylinders for every major TBM function. Each cylinder is engineered for high pressure, heavy loads, and reliable underground operation.

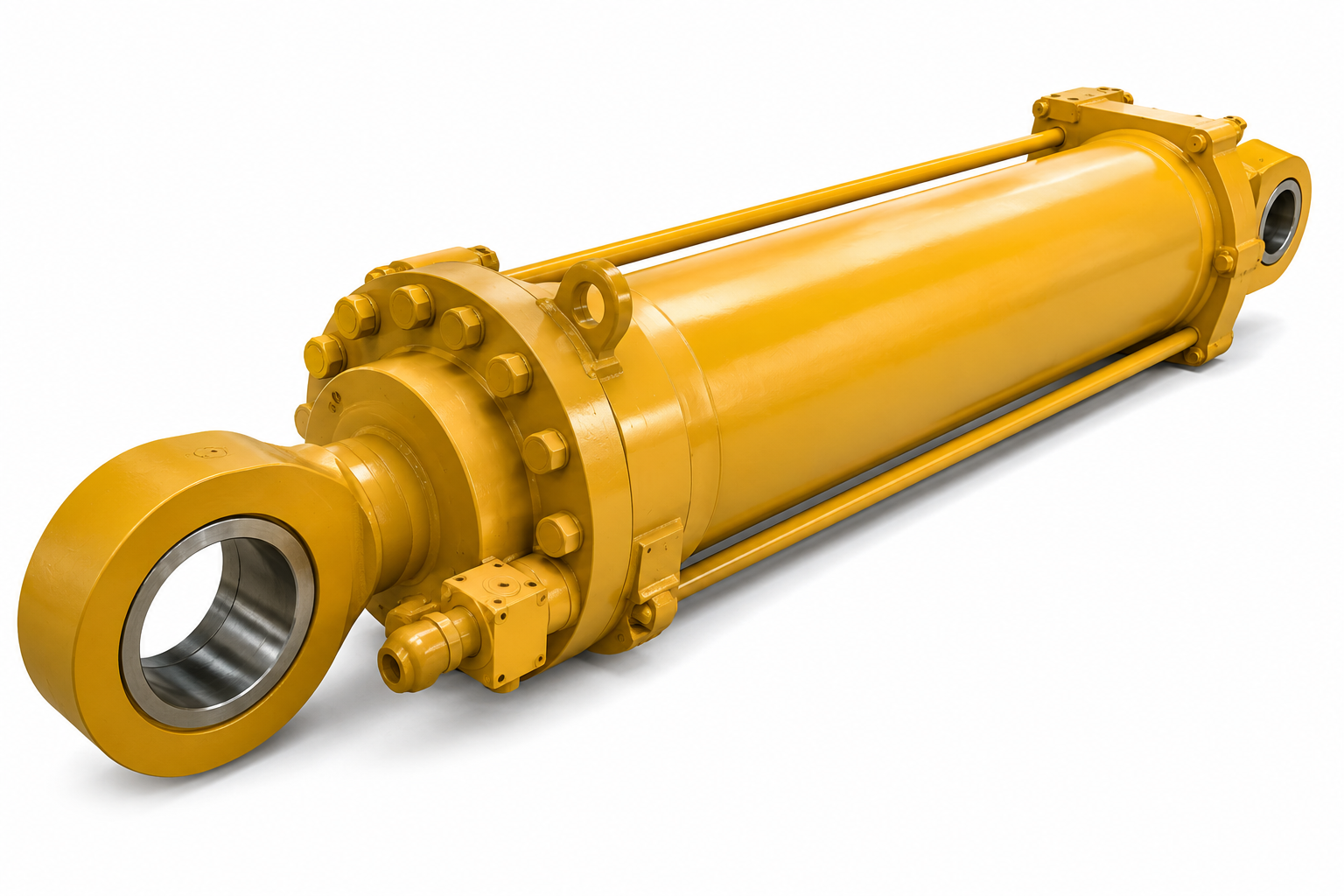

Thrust Hydraulic Cylinder

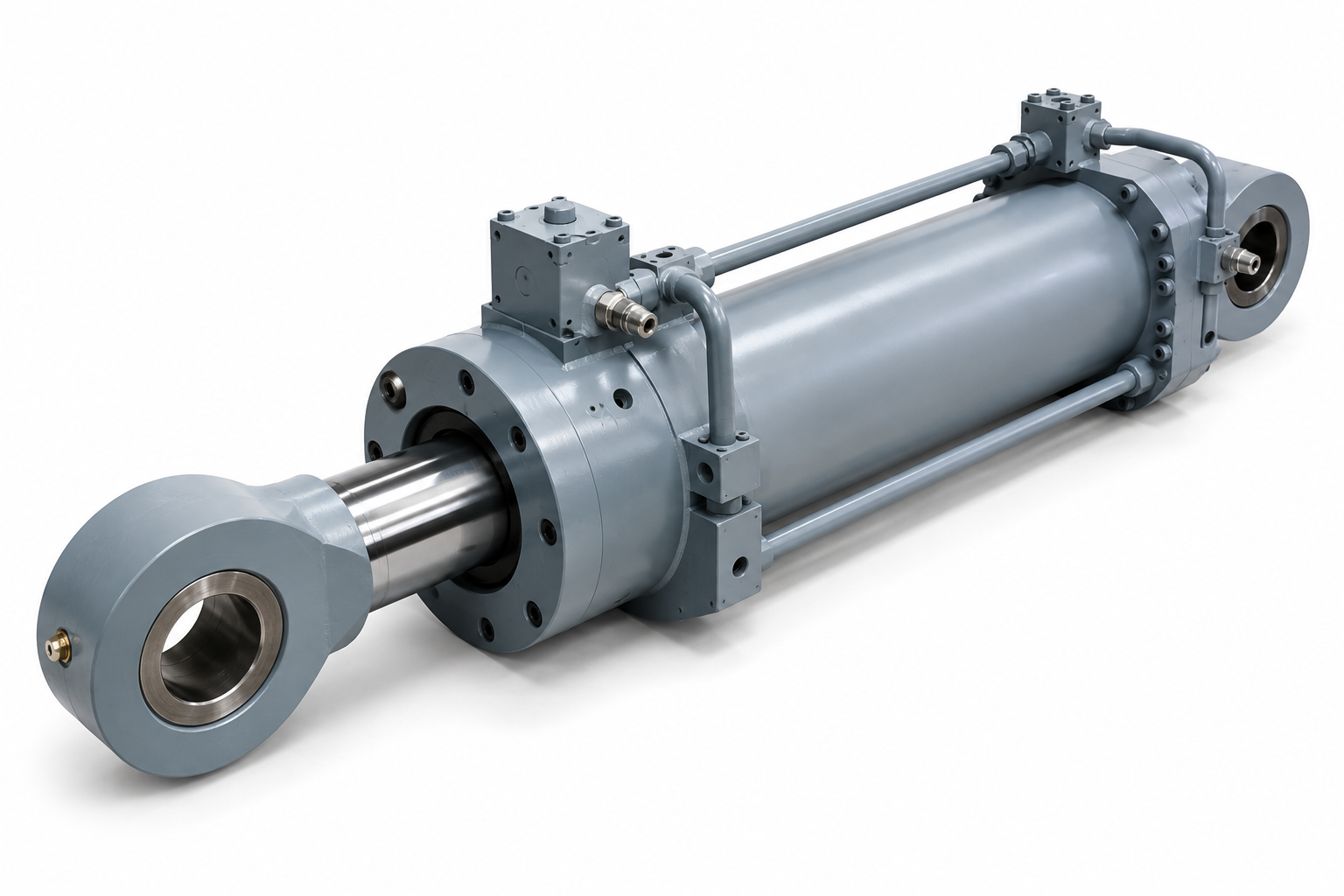

Steering Hydraulic Cylinder

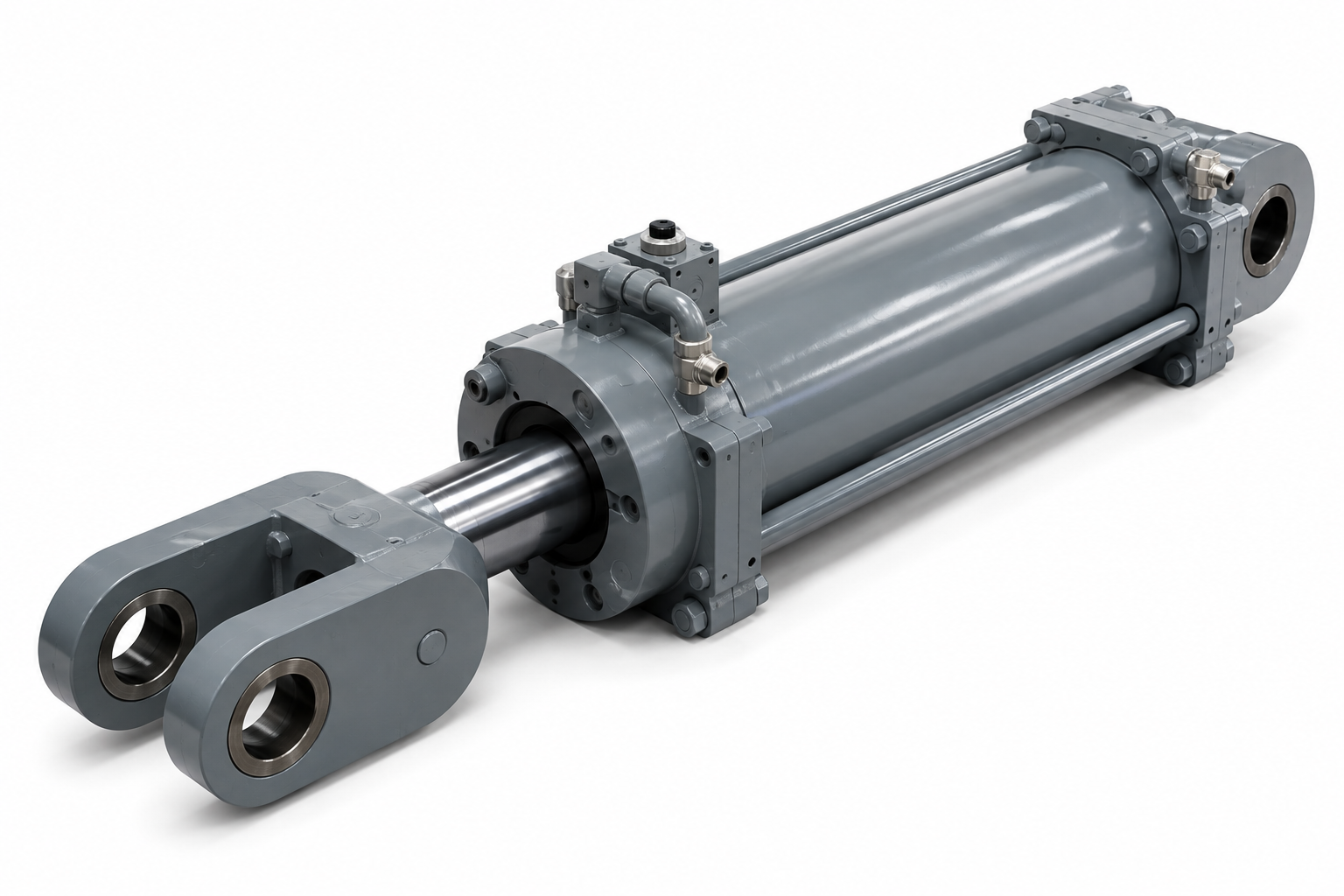

Gripper Hydraulic Cylinder

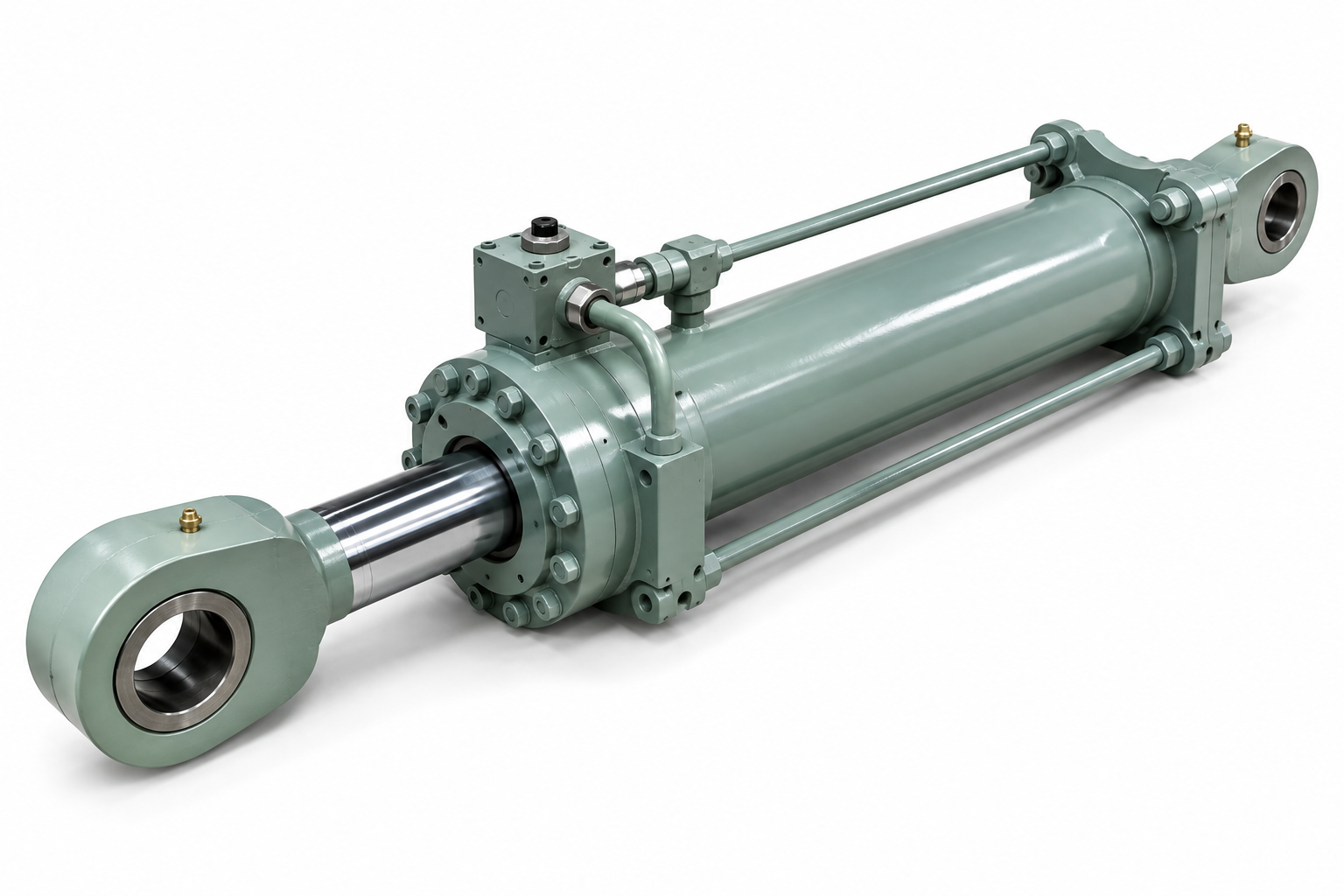

Segment Erector Cylinder

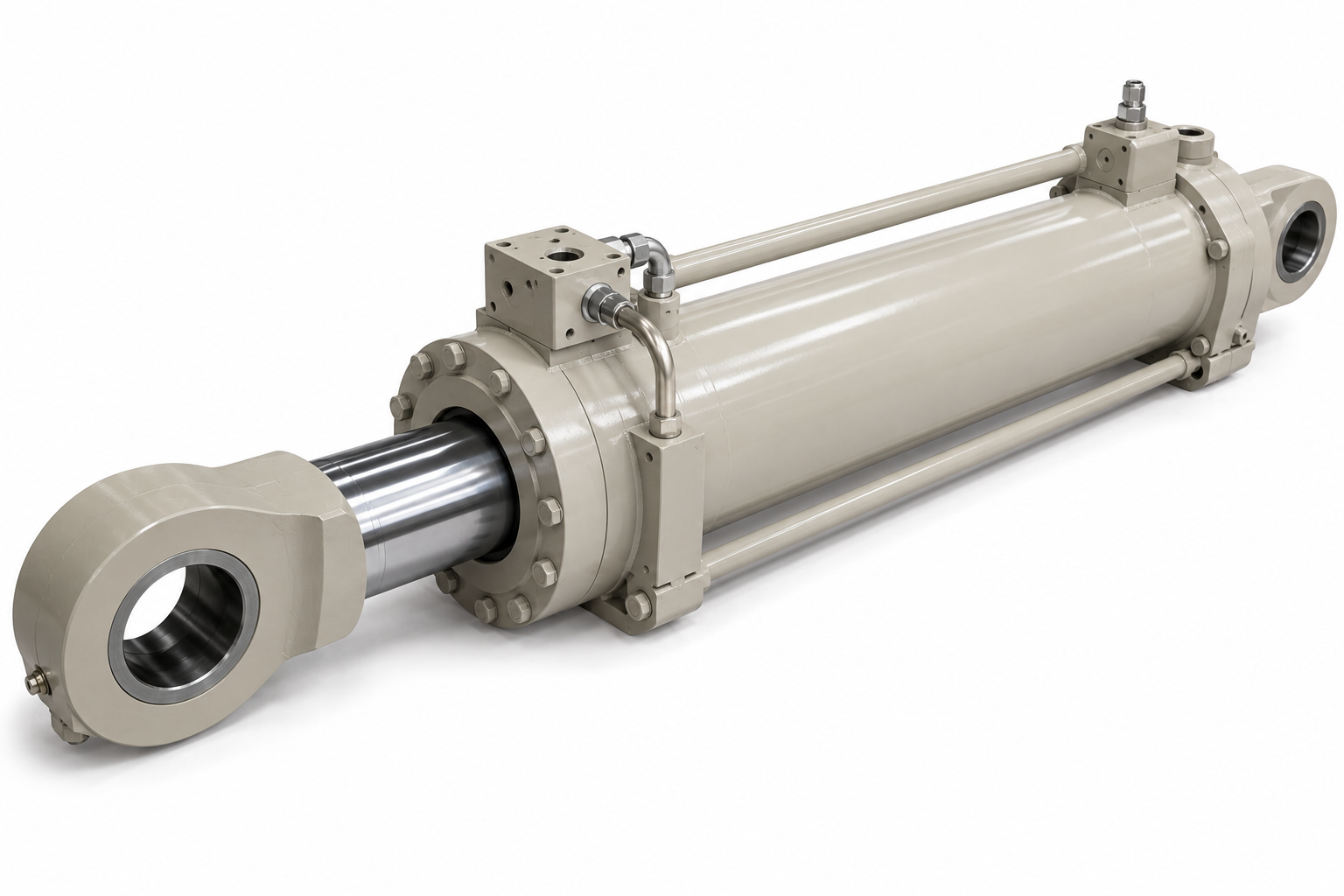

Articulation Hydraulic Cylinder

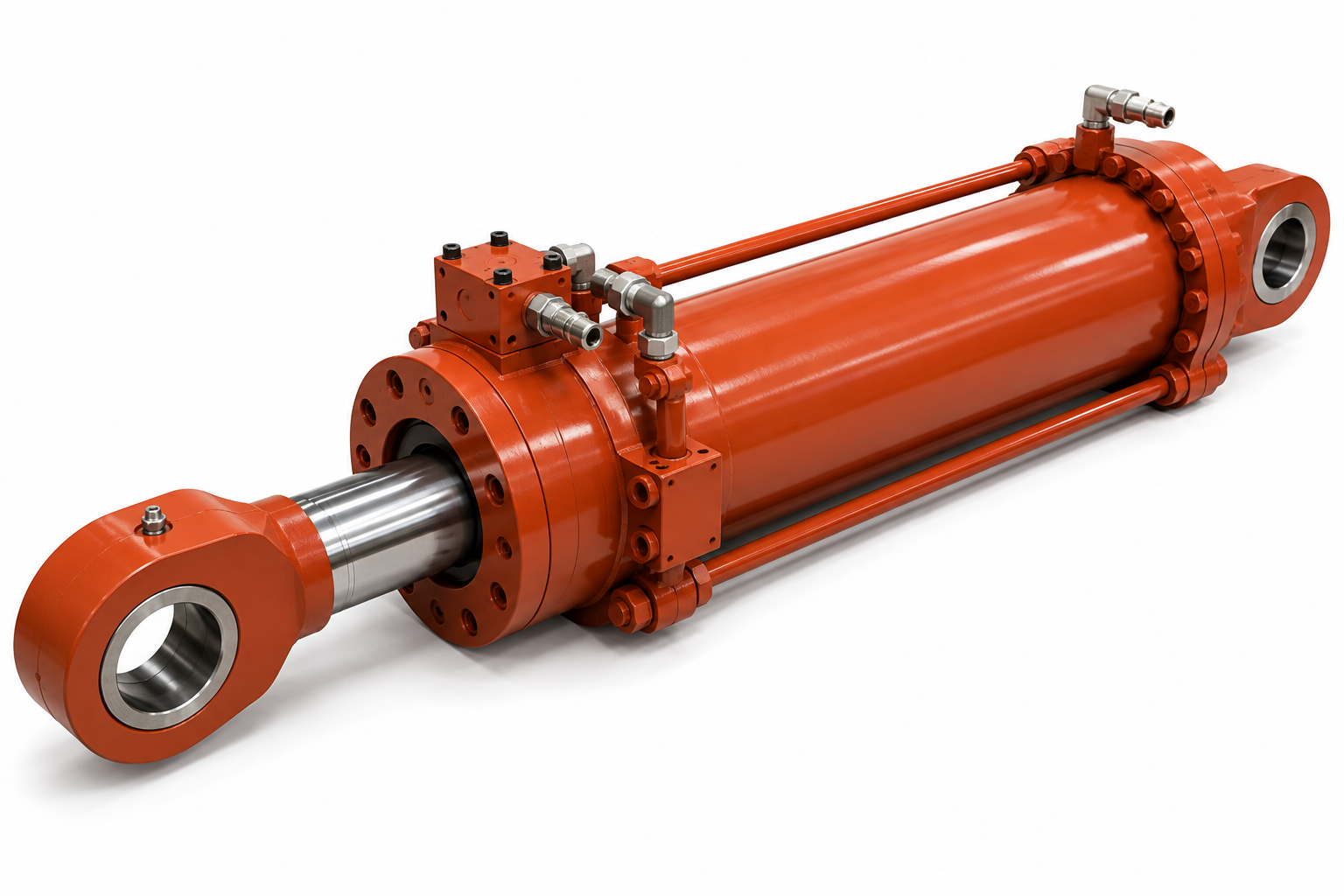

Cutterhead Hydraulic Cylinder

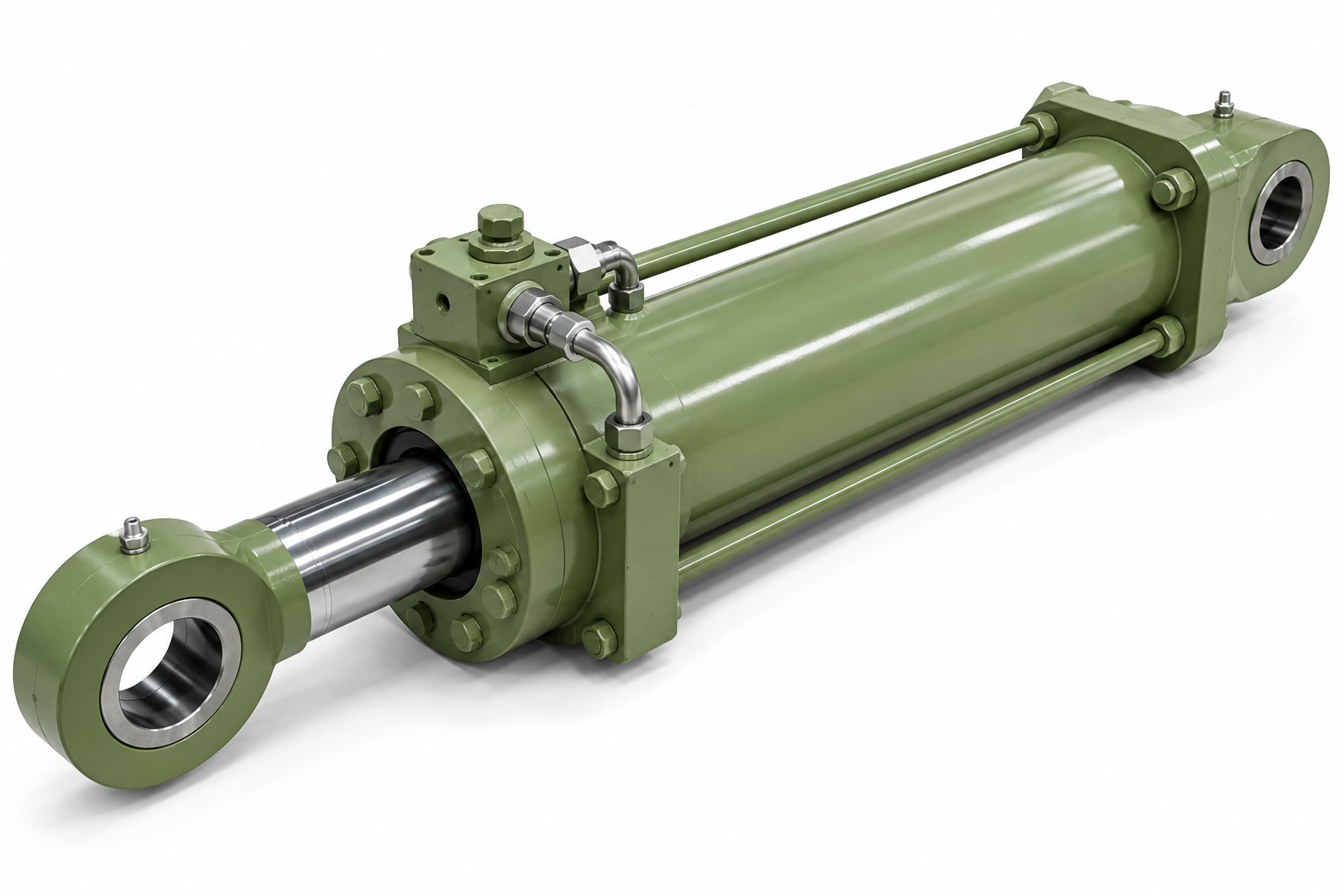

Conveyor Hydraulic Cylinder

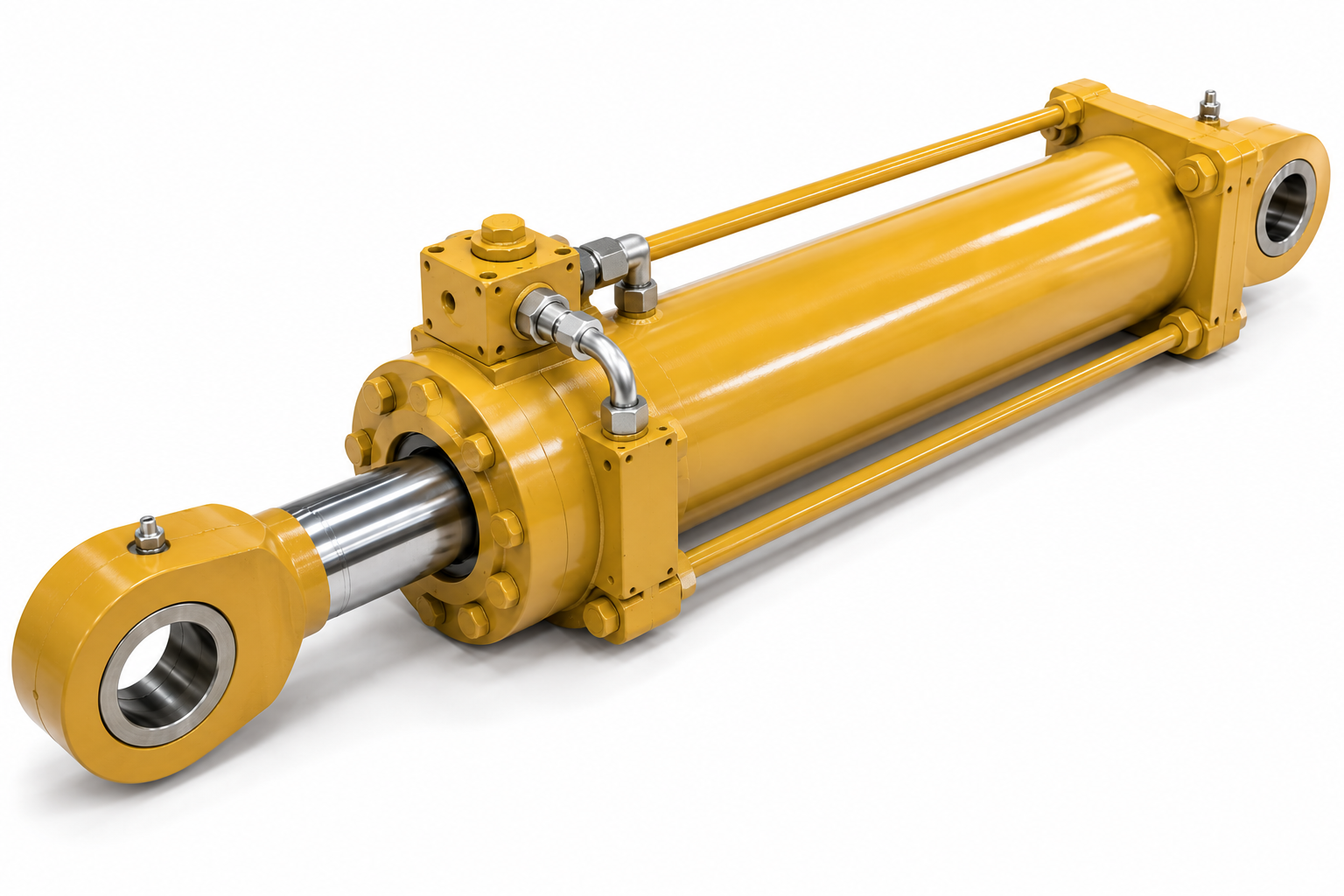

Stabilizer Hydraulic Cylinder
Technical Specifications
Our one way hydraulic cylinders can be customized according to your equipment structure, working pressure, installation space, and operating environment. From bore size and stroke length to rod material, mounting style, sealing system, and surface treatment, each specification is selected to ensure stable force output, smooth movement, reliable sealing, and long service life in demanding hydraulic applications.
| Item | Range | Notes |
|---|---|---|
| Bore Diameter | 22mm – 600mm | Custom bores available on request |
| Stroke Length | Up to 6000mm | Telescopic designs, 2–6 stages |
| Working Pressure | Up to 100Mpa | Rated per application, tested at 1.5× |
| Rod Diameter | 20mm–300 mm | Custom rod sizes available on request |
| Chrome plating thickness | 30–50 µm | Salt-spray tested 500+ hrs |
| Mounting Type | Clevis / Flange / Trunnion | Custom available on request |
| Tube & Rod Material | 20# Steel,45# Steel,27SiMn、42CrMo,Carbon Steel, Alloy Steel, Stainless Steel | Custom available on request |
| Seal Brand | Hallite, NOK, SKF, Parker,TYS Seals | Custom available on request |
| Temperature Range | -20°C to +120°C | Custom available on request |
OEM Manufacturing Capabilities
Whether you are a TBM manufacturer, underground construction equipment builder, hydraulic system integrator, or industrial distributor, we provide flexible OEM manufacturing services for both prototype development and volume production. Our engineering team can optimize cylinder structures, recommend suitable materials, and support your project from design verification to mass production.
Every custom hydraulic cylinder is precision-machined, professionally assembled, and 100% pressure tested before delivery to ensure dependable performance in high-pressure underground environments.
✔ Bore Diameter ✔ Seal Brand
✔ Stroke Length ✔ Tube & Rod Material
✔ Rod Diameter ✔ Surface Treatment
✔ Mounting Style ✔ Painting Color
✔ Working Pressure ✔ OEM Logo
✔ Port Type & Thread ✔ Packaging
Why Choose ZHY Hydraulic？
Heavy-Duty Engineering
Designed specifically for high-pressure underground applications where continuous operation and extreme loads demand exceptional structural strength.
Large Bore & Long Stroke Capability
We manufacture large hydraulic cylinders suitable for demanding tunnel boring machine applications requiring high thrust and extended stroke lengths.
Premium Sealing Systems
High-quality sealing solutions help minimize leakage, reduce maintenance, and extend service life in abrasive underground environments.
Responsive Engineering Support
Our engineering team works closely with customers to optimize cylinder design, recommend suitable materials, and solve application-specific challenges before production begins.
TBM Hydraulic Cylinder Selection Matrix
This matrix helps match TBM cylinder functions with the main engineering focus for OEM production, replacement repair, and wholesale tunneling spare parts supply.
| TBM Cylinder Type | Typical Use | Main Selection Focus |
|---|---|---|
| TBM Thrust Cylinder | Shield advance, pushing force, machine progression | Large bore, high pressure, long stroke, synchronization, pressure holding, mounting accuracy |
| Steering Cylinder | Alignment correction and tunnel direction control | Stroke accuracy, smooth movement, controlled extension, compact mounting, seal reliability |
| Articulation Cylinder | Shield articulation and curved tunnel control | Side load, mounting geometry, movement range, guide support, rod strength |
| Gripper Cylinder | Hard rock TBM gripping and support | Holding force, pressure stability, rugged mounting, shock load, rock vibration |
| Segment Erector Cylinder | Tunnel lining segment lifting, rotation, and placement | Precise movement, load holding, smooth control, compact space, safety factor |
| Screw Conveyor Cylinder | EPB discharge gate, conveyor adjustment, material flow control | Mud protection, abrasion resistance, port clearance, stable movement |
| Replacement TBM Cylinder | Repair, rebuild, spare parts, discontinued cylinder replacement | Old sample review, bore, rod, stroke, closed length, mounting, port direction, pressure rating |
Common TBM Cylinder Problems and ZHY Solutions
TBM cylinder problems often come from mud contamination, rod scoring, seal wear, pressure loss, synchronization issues, side load, mounting misalignment, or inaccurate replacement measurements.
Thrust Cylinder Drift or Pressure Loss | Possible reason: internal leakage, worn piston seal, pressure spikes, damaged barrel, or contamination in the hydraulic system. | |
ZHY support: ZHY reviews bore size, seal system, pressure rating, machining quality, and leakage testing before shipment. | ||
Rod Scoring in Mud or Slurry | Possible reason: abrasive particles, poor wiper performance, weak rod protection, or damaged seals. | |
ZHY support: ZHY reviews rod surface protection, seal selection, wiper design, and ground condition information before production. | ||
Steering or Articulation Misalignment | Possible reason: wrong stroke, weak mounting, side load, poor guide support, or incorrect installation geometry. | |
ZHY support: ZHY confirms stroke, mounting points, rod diameter, guide design, and machine installation dimensions. | ||
Replacement Cylinder Does Not Fit | Possible reason: wrong closed length, port direction, pin size, mounting width, stroke length, or missing old cylinder details. | |
ZHY support: ZHY checks old photos, samples, drawings, pin-to-pin measurements, port details, mounting dimensions, and installation area. | ||
Tunnel Boring Machine Hydraulic Cylinder FAQs
Common questions about tunnel boring machine hydraulic cylinders, TBM thrust cylinders, steering cylinders, articulation cylinders, segment erector cylinders, replacement cylinders, and wholesale supply from China.
1. What are tunnel boring machine hydraulic cylinders used for?
Tunnel boring machine hydraulic cylinders are used for shield thrust, steering, articulation, gripper support, segment erector movement, screw conveyor adjustment, pipe jacking, shield support, and other tunneling equipment functions.
2. What makes TBM hydraulic cylinders different from standard industrial cylinders?
TBM cylinders usually need high thrust force, long stroke stability, compact installation fit, strong seals, rod protection, synchronization support, pressure holding, and reliable testing because they work in confined tunneling environments with mud, slurry, groundwater, rock dust, and long project cycles.
3. Can ZHY manufacture TBM thrust cylinders?
Yes. ZHY can manufacture TBM thrust cylinders according to thrust force, bore size, rod diameter, stroke length, working pressure, mounting type, synchronization requirement, and machine installation dimensions.
4. Can ZHY manufacture segment erector hydraulic cylinders?
Yes. ZHY can manufacture segment erector hydraulic cylinders for lifting, positioning, rotation, and lining segment handling. Smooth movement, load holding, compact installation, and replacement accuracy should be confirmed before production.
5. Can ZHY manufacture replacement TBM hydraulic cylinders?
Yes. ZHY can manufacture replacement TBM hydraulic cylinders when the original cylinder is leaking, damaged, delayed, discontinued, or difficult to source. You can send drawings, old cylinder photos, bore size, rod diameter, stroke, mounting dimensions, port details, pressure rating, and machine information for review.
6. What information is needed for a TBM hydraulic cylinder quote?
For a faster quote, provide TBM type, cylinder function, bore diameter, rod diameter, stroke length, closed length, open length, working pressure, mounting type, oil port size, ground condition, quantity, and drawings or photos.
7. Where can I buy wholesale TBM hydraulic cylinders from China?
You can source wholesale TBM hydraulic cylinders from ZHY in China for OEM tunnel boring machines, rebuild projects, tunneling maintenance, distributors, and spare parts supply. As a manufacturer, supplier, and factory, ZHY supports custom production, testing, export packing, and batch supply.
8. Does ZHY test TBM hydraulic cylinders before shipment?
Yes. ZHY can perform pressure testing, leakage testing, full-stroke movement checks, and dimensional inspection before shipment. Testing helps confirm sealing performance, pressure holding, movement stability, and production consistency.
Need Custom TBM Hydraulic Cylinders?
Upload your drawing, sample, or technical specifications today. Our engineering team will review your requirements and provide a professional technical solution together with a competitive quotation for your OEM tunnel boring machine hydraulic cylinder project.
