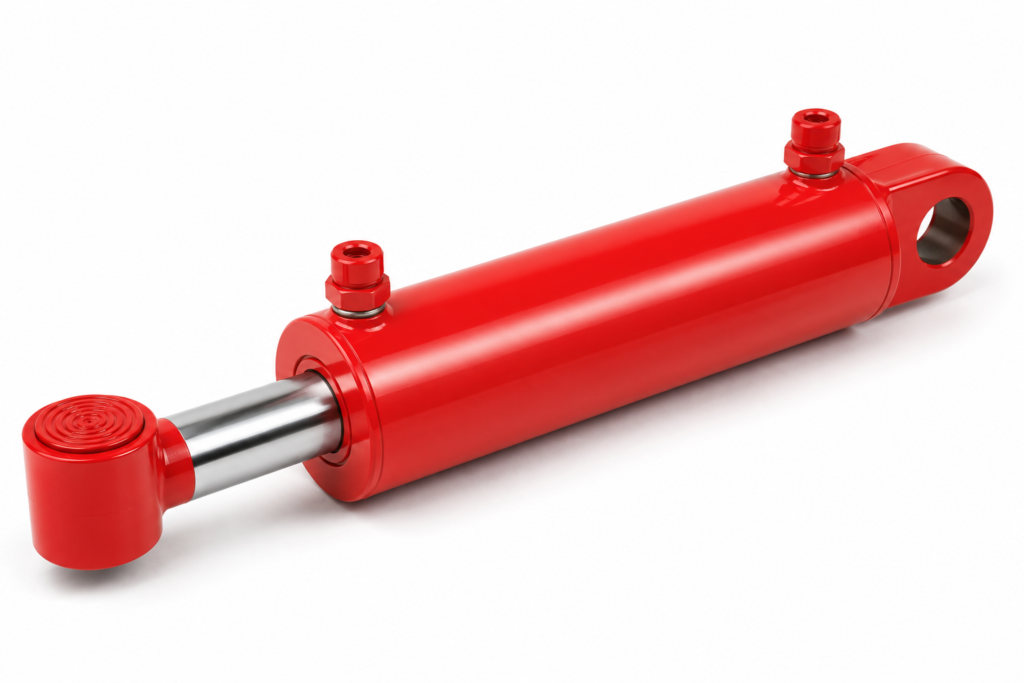

Hydraulic Jack Cylinders
Need custom hydraulic jack cylinders for bottle jacks, floor jacks, trolley jacks, toe jacks, transmission jacks, trailer jacks, or industrial lifting jacks? ZHY builds jack cylinders around compact closed height, high lifting force, pressure holding, short-stroke stability, seal life, rod protection, and replacement fit.
As a China hydraulic jack cylinder manufacturer, supplier, and factory, ZHY supports OEM jack equipment, aftermarket replacement, repair parts, distributor inventory, and wholesale hydraulic jack cylinders for lifting equipment buyers.
Custom Hydraulic Jack Cylinders for Real Lifting Equipment Demand
Hydraulic jack cylinders are widely used in automotive service, heavy truck maintenance, industrial equipment repair, machinery installation, warehouse maintenance, construction equipment service, and plant maintenance. Market demand is not only for new jacks, but also for replacement cylinders, repair parts, distributor stock, and compact high-force lifting solutions.
ZHY manufactures custom hydraulic jack cylinders for bottle jacks, floor jacks, trolley jacks, toe jacks, transmission jacks, trailer jacks, service jacks, and industrial lifting jack systems. Cylinders can be produced from drawings, old samples, photos, or key dimensions.
For B2B sourcing, ZHY supports manufacturer-direct supply, supplier coordination, factory production, and wholesale hydraulic jack cylinder orders for OEM equipment builders, hydraulic parts distributors, repair companies, and equipment service teams.
Hydraulic Jack Cylinder Applications
Hydraulic jack cylinders are widely used in vehicle service, machinery maintenance, equipment positioning, and industrial lifting tasks where stable force, compact structure, and reliable pressure holding are required.
Vehicle Repair and Service Bays
Low-Clearance Machinery Positioning
Transmission Handling and Maintenance Support

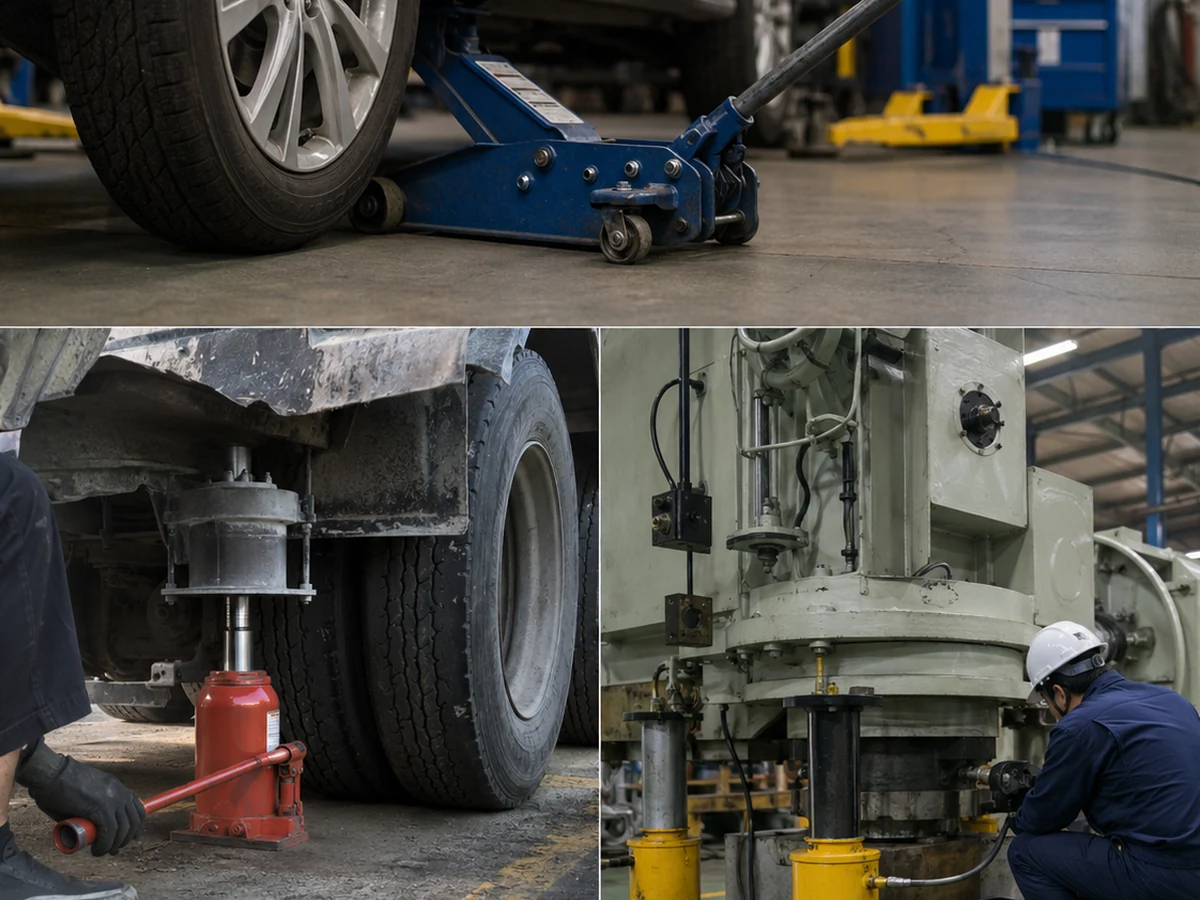

Hydraulic Jack Cylinder Market Application Map
Hydraulic jack cylinder demand comes from several practical markets. ZHY writes the cylinder specification around the real jack type, lifting load, closed height, lifting stroke, base condition, saddle contact, and replacement route.
Common Jack Cylinder Sourcing Scenarios
Garage and Vehicle Service
Floor jack cylinders, trolley jack cylinders, and bottle jack cylinders for repair shops and service equipment.
Truck and Trailer Maintenance
High-force jack cylinders for heavy vehicles, trailer support, maintenance lifts, and service fleets.
Machinery Installation
Compact lifting cylinders for positioning equipment, plant maintenance, and controlled heavy-object lifting.
Replacement and Repair Parts
Replacement hydraulic jack cylinders for leaking, drifting, bent, worn, or discontinued jack models.
Wholesale Jack Cylinder Supply
Batch production for hydraulic parts suppliers, jack repair companies, and distributor inventory programs.
Jack Equipment Production
Drawing-based cylinders for jack manufacturers requiring repeatable dimensions, testing, and export packing.
Jack Cylinder Force, Stroke and Holding Review
A hydraulic jack cylinder is selected differently from a long-stroke lift cylinder. It usually needs compact height, high force, stable pressure holding, accurate saddle contact, strong base support, and reliable sealing in a small body.
Why Compact Force Matters
Jack cylinders often work in limited space. ZHY reviews tonnage, bore diameter, ram diameter, stroke, closed height, oil volume, saddle contact, mounting base, and pressure-holding requirement before confirming the hydraulic jack cylinder design.
Lift Force
Match bore and pressure to rated lifting capacity.
Closed Height
Keep the cylinder compact enough for the jack body.
Ram Travel
Confirm usable lifting stroke and extension range.
Pressure Stability
Reduce drift risk through sealing and testing.
Replacement Match
Check base, saddle, port, and body dimensions.
Hydraulic Jack Cylinders by Product Family
ZHY supports different hydraulic jack cylinder products for market use, repair replacement, OEM production, and wholesale supply.
Bottle Jack Hydraulic Cylinders
Floor Jack and Trolley Jack Cylinders
For garage service jacks, trolley jacks, and vehicle repair equipment where lift response, ram stability, and replacement availability matter.
Toe Jack Hydraulic Cylinders
For low-clearance lifting and machinery positioning where compact height, side load review, and base support are important.
Transmission Jack Cylinders
For controlled lifting and positioning of transmission assemblies, workshop service platforms, and maintenance equipment.
Hydraulic Jack Cylinder Structure Review
Market replacement problems often come from the wrong closed height, the wrong saddle design, port mismatch, poor seal fit, weak rod protection, or a cylinder body size that does not fit the jack frame.
Rated Tonnage and Pressure
Confirm jack capacity, working pressure, peak pressure, and required safety margin.
Ram Diameter and Stroke
Ram size and stroke must match lift force, working height, and jack body space.
Closed Height and Body Size
Compact jacks need accurate cylinder height, barrel diameter, base size, and frame clearance.
Saddle, Base and Mounting
Saddle contact, base support, mounting groove, and retaining structure should match the jack design.
Seal and Pressure Holding
Seal selection and testing help reduce leakage, drift, and unstable lifting behavior.
Hydraulic Jack Cylinder Selection Matrix
This matrix helps match hydraulic jack cylinder products with real market use, replacement needs, and sourcing requirements.
| Jack Cylinder Product | Typical Market Use | Main Selection Focus |
|---|---|---|
| Bottle Jack Cylinder | Portable jacks, vehicle service, compact high-force lifting | Tonnage, closed height, ram diameter, saddle, base, pressure holding |
| Floor Jack Cylinder | Garage floor jacks, trolley jacks, service jacks | Stroke, lift response, body size, return movement, frame fit, leakage control |
| Toe Jack Cylinder | Low-clearance industrial lifting, machinery positioning | Low height, side-load review, base stability, ram protection, mounting strength |
| Transmission Jack Cylinder | Workshop transmission lifting and positioning | Smooth movement, controlled height, platform stability, compact installation |
| Trailer Jack Cylinder | Trailer support, stabilizer jack, mobile equipment support | Outdoor protection, holding stability, mounting fit, stroke and load capacity |
| Replacement Jack Cylinder | Repair, rebuild, discontinued jack cylinder replacement | Photos, tonnage, bore, ram, stroke, closed height, saddle, base, port direction |

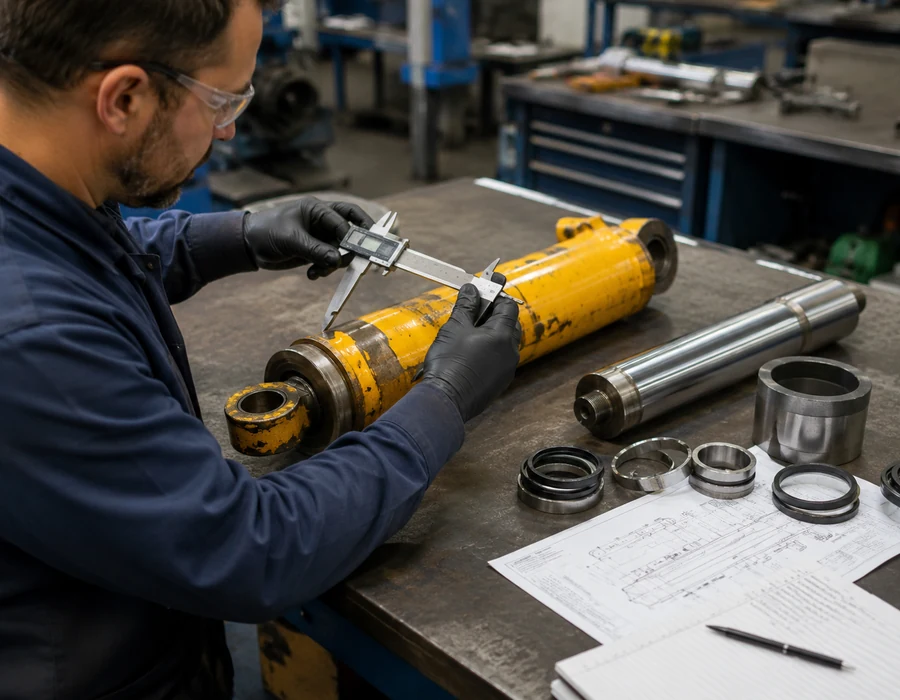

Replacement Hydraulic Jack Cylinder Supplier Workflow
Many hydraulic jack cylinder orders come from repair replacement rather than new jack production. ZHY can manufacture replacement jack cylinders from drawings, old samples, photos, and key measurements, supporting supplier sourcing, factory production, and wholesale replacement programs.
What to Send for Replacement Production
- Jack type: bottle jack, floor jack, trolley jack, toe jack, transmission jack, trailer jack, or special lifting jack.
- Rated capacity: provide tonnage, working pressure, expected lifting load, and application environment.
- Cylinder dimensions: confirm closed height, open height, ram diameter, barrel diameter, stroke length, and body length.
- Top and bottom details: measure saddle shape, top contact, base size, mounting groove, retaining ring, or special structure.
- Port and pump connection: confirm oil port thread, port direction, pump interface, and hose clearance if applicable.
- Photos and sample: send clear old cylinder photos from multiple angles or provide a sample for factory measurement.
Hydraulic Jack Cylinder Supply Programs
ZHY works as a hydraulic jack cylinder manufacturer, hydraulic jack cylinder supplier, and hydraulic cylinder factory for OEM jack equipment, repair parts, distributor stock, and wholesale hydraulic jack cylinders.
OEM Jack Production
Drawing-based hydraulic jack cylinders for new jack equipment and repeat production requirements.
Replacement Sourcing
Support for repair companies sourcing leaking, drifting, damaged, or discontinued jack cylinders.
Custom Factory Production
Custom bore, ram, stroke, closed height, saddle, base, seals, and port details.
Distributor Stock
Batch supply for hydraulic parts distributors, service tool sellers, and industrial spare parts buyers.
Common Hydraulic Jack Cylinder Problems and ZHY Solutions
Hydraulic jack cylinder issues are often connected to pressure loss, seal wear, rod scoring, ram drift, oil leakage, slow lifting, poor return, or replacement dimension mismatch.
Jack Cannot Hold Load | Possible reason: internal leakage, worn piston seal, damaged cylinder wall, pressure loss, or mismatch between cylinder and pump system. | |
ZHY support: ZHY reviews bore size, seal system, pressure rating, machining quality, and leakage testing before shipment. | ||
Oil Leakage Around Ram | Possible reason: worn seals, scratched ram surface, dust contamination, wrong seal material, or long-term overload conditions. | |
ZHY support: ZHY checks ram finish, seal material, guide support, dust protection, and pressure-holding requirement. | ||
Slow Lift or Uneven Movement | Possible reason: wrong oil volume, small port, air in system, cylinder-pump mismatch, or excessive internal resistance. | |
ZHY support: ZHY confirms stroke, port design, internal structure, movement requirement, and jack equipment layout. | ||
Replacement Cylinder Does Not Fit | Possible reason: wrong closed height, ram diameter, base size, saddle design, port direction, or missing old cylinder dimensions. | |
ZHY support: ZHY checks old photos, sample dimensions, drawings, body size, top contact, base details, port thread, and installation clearance. | ||
Hydraulic Jack Cylinder FAQs
Common questions about hydraulic jack cylinders, bottle jack cylinders, floor jack cylinders, toe jack cylinders, replacement cylinders, and wholesale jack cylinder supply from China.
1. What are hydraulic jack cylinders used for?
Hydraulic jack cylinders are used in bottle jacks, floor jacks, trolley jacks, toe jacks, transmission jacks, trailer jacks, service jacks, and industrial lifting jacks to provide compact high-force lifting and pressure holding.
2. Can ZHY manufacture replacement hydraulic jack cylinders?
Yes. ZHY can manufacture replacement hydraulic jack cylinders from photos, drawings, samples, rated tonnage, ram diameter, stroke, closed height, base size, saddle design, and port details.
3. What information is needed for a hydraulic jack cylinder quote?
For a faster quote, provide jack type, rated capacity, bore diameter, ram diameter, stroke length, closed height, open height, body diameter, saddle structure, base details, port thread, quantity, and photos or drawings.
4. Does ZHY supply bottle jack cylinders and floor jack cylinders?
Yes. ZHY can manufacture bottle jack cylinders, floor jack cylinders, trolley jack cylinders, toe jack cylinders, transmission jack cylinders, trailer jack cylinders, and industrial lifting jack cylinders.
5. Why is closed height important for hydraulic jack cylinders?
Closed height determines whether the jack cylinder can fit inside the jack frame and reach the starting lifting point. For compact jacks and low-clearance applications, closed height is one of the most important replacement dimensions.
6. Does ZHY supply wholesale hydraulic jack cylinders?
Yes. ZHY supports wholesale hydraulic jack cylinders for hydraulic parts distributors, jack repair companies, service tool sellers, OEM jack manufacturers, and industrial spare parts buyers.
Need Custom Hydraulic Jack Cylinders?
Send ZHY your drawing, old cylinder photos, jack type, rated tonnage, bore size, ram diameter, stroke length, closed height, body size, saddle details, base structure, oil port details, working pressure, and quantity. Our team will review the information before quotation.
ZHY supports bottle jack cylinders, floor jack cylinders, trolley jack cylinders, toe jack cylinders, transmission jack cylinders, trailer jack cylinders, replacement hydraulic jack cylinders, OEM production, and wholesale jack cylinder supply.
